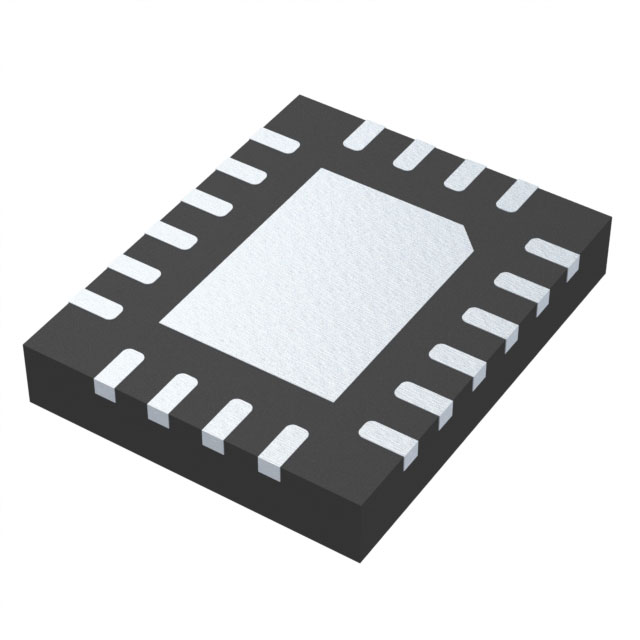

MPQ4469GV-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 5A 20QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPQ4469GV-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 5A 20QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPQ4469GV-AEC1-Z |
|---|---|
| Current - Output | 5 A |
| Frequency - Switching [Max] | 2.5 MHz |
| Frequency - Switching [Min] | 350 kHz |
| Function | Step-Down |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 20-VQFN Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 20-QFN (4x5) |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Output (Max) | 36 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.83 | |
| 10 | $ 5.24 | |||
| 25 | $ 4.95 | |||
| 100 | $ 4.29 | |||
| 250 | $ 4.07 | |||
| 500 | $ 3.65 | |||
| 1000 | $ 3.08 | |||
| 2500 | $ 2.93 | |||
| Tape & Reel (TR) | 5000 | $ 2.73 | ||
Description
General part information
MPQ4469 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 5A 20-VQFN Exposed Pad
