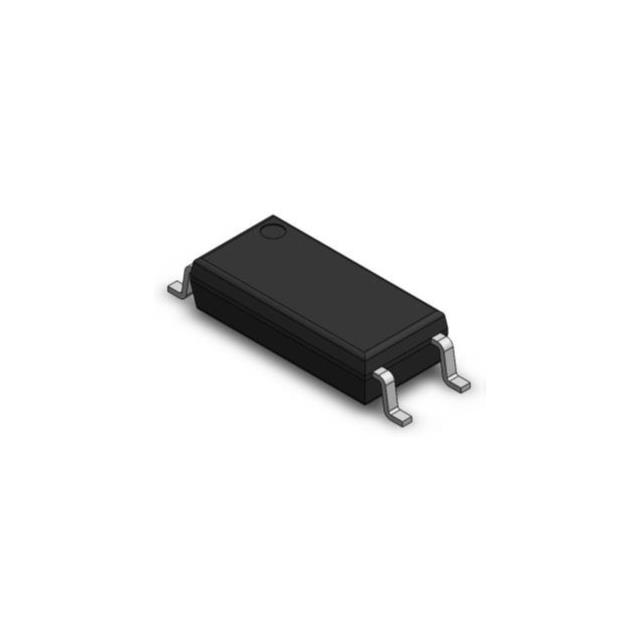

APC-1017

Active

American Bright Optoelectronics Corporation

LSOP4, DC INPUT, PHOTO TRANSISTO

Search across all available documentation for this part.

Active

American Bright Optoelectronics Corporation

LSOP4, DC INPUT, PHOTO TRANSISTO

Technical Specifications

Parameters and characteristics for this part

Specification	APC-1017

Current - DC Forward (If) (Max) [Max]	60 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max) [Max]	160 %
Current Transfer Ratio (Min) [Min]	80 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-55 °C
Output Type	1.81 mOhm
Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	8 µs
Rise / Fall Time (Typ) [custom]	6 µs
Supplier Device Package	4-LSOP
Vce Saturation (Max) [Max]	300 mV
Voltage - Forward (Vf) (Typ)	1.45 V

Part	Output Type	Current - Output / Channel	Vce Saturation (Max) [Max]	Mounting Type	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Supplier Device Package	Current Transfer Ratio (Min) [Min]	Input Type	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Channels	Current Transfer Ratio (Max) [Max]
American Bright Optoelectronics Corporation APC-1018	1.81 mOhm	50 mA	300 mV	Surface Mount	60 mA	1.45 V	4-SMD Gull Wing	4-LSOP	130 %	DC	260 %	8 µs	6 µs	-55 °C	110 °C	1
American Bright Optoelectronics Corporation APC-1017	1.81 mOhm	50 mA	300 mV	Surface Mount	60 mA	1.45 V	4-SMD Gull Wing	4-LSOP	80 %	DC		8 µs	6 µs	-55 °C	110 °C	1	160 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-LSOP
