84826-01

Active

Honeywell Sensing and Productivity Solutions

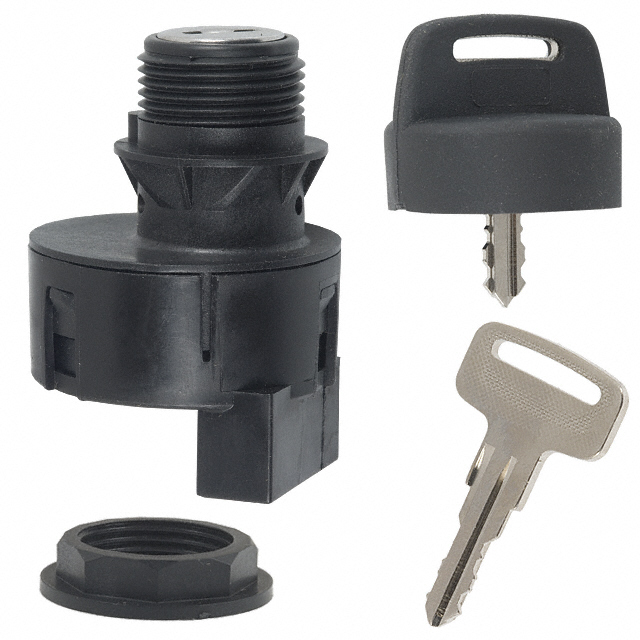

SWITCH KEYLOCK 3POS SPDT 20A 12V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH KEYLOCK 3POS SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	84826-01

Actuator Type	Flat Key
Angle of Throw	45 °
Circuit	SPDT
Contact Finish	Tin
Contact Material	Brass
Contact Timing	Not Specified
Current Rating (Amps)	20 A
Depth Behind Flange	43.43 mm
Electrical Life	25000 Steps
Key Removable Positions	Left
Mechanical Life	25000 Steps
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Panel Cutout Dimensions [diameter]	22.35 mm
Switch Function	Off-On-Mom
Termination Style	Connector
Voltage Rating - DC	12 V

Part	Termination Style	Mechanical Life	Switch Function	Actuator Type	Depth Behind Flange	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Contact Timing	Contact Finish	Voltage Rating - DC	Contact Material	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Key Removable Positions	Angle of Throw
Honeywell Sensing and Productivity Solutions 84826-01	Connector	25000 Steps	Off-On-Mom	Flat Key	43.43 mm	85 °C	-40 °C	25000 Steps	Not Specified	Tin	12 V	Brass	20 A	22.35 mm	SPDT	Left	45 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Keylock Switch 3 Position SPDT 20A (DC) AC 12 VDC Panel Mount
