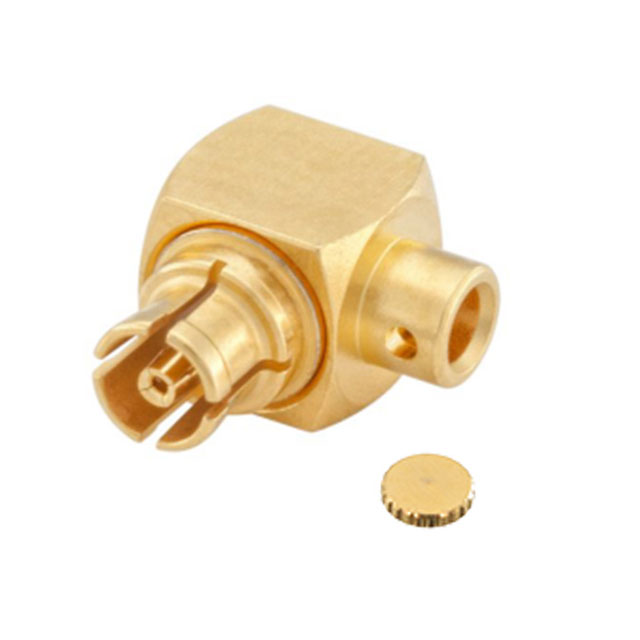

18K201-271L5

Active

Rosenberger

RF SMP CONNECTOR, 1 CONTACT(S), FEMALE, CABLE MOUNT, SOLDER LUG TERMINAL, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF SMP CONNECTOR, 1 CONTACT(S), FEMALE, CABLE MOUNT, SOLDER LUG TERMINAL, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	18K201-271L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Mini, SMP
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 End Cap, 1 Connector
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	325 V

Part	Number of Ports	Dielectric Material	Contact Termination	Body Material	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Cable Group	Mounting Type	Housing Color	Fastening Type	Voltage Rating	Center Contact Plating	Body Finish	Impedance	Connector Style	Frequency - Max [Max]	Center Contact Material	Connector Type	Shield Termination
Rosenberger 18K201-271L5	1	Polytetrafluoroethylene (PTFE)	Solder	Brass	155 °C	-55 °C	1 Connector 1 End Cap	RG-405 (.085" Semi Rigid)	Free Hanging (In-Line) Right Angle	Gold	Snap-On	325 V	Gold	Gold	50 Ohms	Mini SMP	65 GHz	Beryllium Copper	Female Socket Jack	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP, Mini Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
