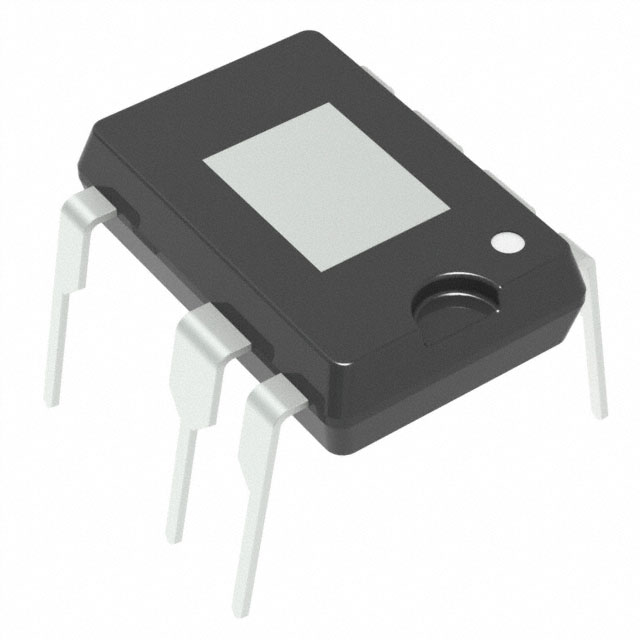

MP110GPR

MONOLITHIC POWER SYSTEMS (MPS)

IC OFFLINE SWITCH FLYBACK 8DIP

Search across all available documentation for this part.

MONOLITHIC POWER SYSTEMS (MPS)

IC OFFLINE SWITCH FLYBACK 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	MP110GPR

Control Features	Frequency Control
Fault Protection	Over Temperature, Over Load, Over Voltage, Short Circuit
Frequency - Switching [Max]	300 kHz
Internal Switch(s)	True
Mounting Type	Through Hole
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Isolation	Isolated
Package / Case	Exposed Pad, 8-DIP
Package / Case	0.3 in, 7 Leads
Package / Case	7.62 mm
Supplier Device Package	8-PDIP-7EP
Topology	Flyback
Voltage - Breakdown	900 V
Voltage - Start Up	11.7 V
Voltage - Supply (Vcc/Vdd) [Max]	20 V
Voltage - Supply (Vcc/Vdd) [Min]	9 V

Part	Internal Switch(s)	Fault Protection	Package / Case	Package / Case	Package / Case	Mounting Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Control Features	Voltage - Breakdown	Frequency - Switching [Max]	Voltage - Start Up	Supplier Device Package	Output Isolation	Operating Temperature [Min]	Operating Temperature [Max]
MONOLITHIC POWER SYSTEMS (MPS) MP110GPR		Over Load Over Temperature Over Voltage Short Circuit	8-DIP Exposed Pad	0.3 in 7 Leads	7.62 mm	Through Hole	20 V	9 V	Flyback	Frequency Control	900 V	300 kHz	11.7 V	8-PDIP-7EP	Isolated	-40 °C	125 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1500	$ 1.98

General part information

Converter Offline Flyback Topology Up to 300kHz 8-PDIP-7EP
