SC03-12SRWA

Active

Kingbright

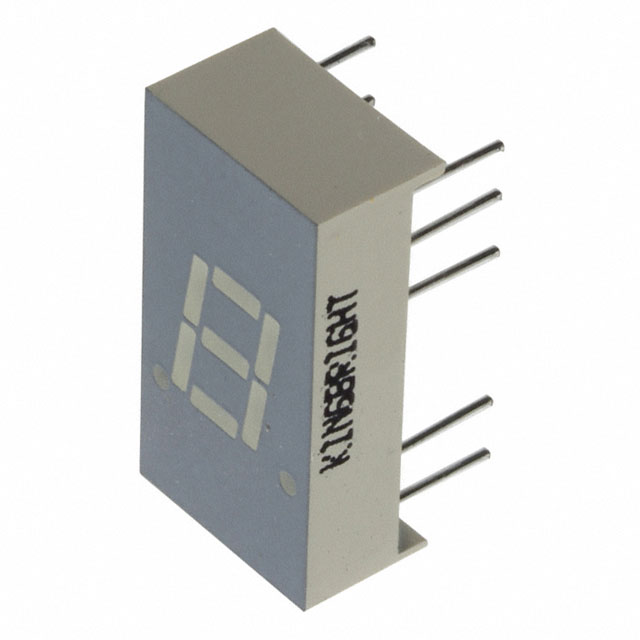

7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 7.62MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SC03-12SRWA

Active

Kingbright

7 SEG NUMERIC DISPLAY, SUPER BRIGHT RED, 7.62MM, ROHS COMPLIANT PACKAGE-10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC03-12SRWA

Color	Red
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.3 in
Digit/Alpha Size	7.62 mm
Display Type	7-Segment
Millicandela Rating	42 mcd
Number of Characters [custom]	1
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.24 in
Size / Dimension [x]	6.1 mm
Size / Dimension [y]	10.16 mm
Size / Dimension [y]	0.4 in
Size / Dimension [z]	0.75 in
Size / Dimension [z]	19.06 mm
Voltage - Forward (Vf) (Typ)	1.85 V
Wavelength - Peak	660 nm

SC03-12 Series

Part	Number of Characters [custom]	Current - Test	Package / Case	Package / Case [y]	Package / Case [x]	Display Type	Color	Wavelength - Peak	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Common Pin	Voltage - Forward (Vf) (Typ)	Digit/Alpha Size	Digit/Alpha Size	Power Dissipation (Max) [Max]	Millicandela Rating
Kingbright SC03-12YWA	1	20 mA	14-DIP	7.62 mm	0.3 "	7-Segment	Yellow	590 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	Common Cathode	2.1 V	0.3 in	7.62 mm	75 mw
Kingbright SC03-12HDB	1	20 mA	14-DIP	7.62 mm	0.3 "	7-Segment	Red	700 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	Common Cathode	2.5 V	0.3 in	7.62 mm	120 mW
Kingbright SC03-12SRWA	1	20 mA	14-DIP	7.62 mm	0.3 "	7-Segment	Red	660 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	Common Cathode	1.85 V	0.3 in	7.62 mm	75 mw	42 mcd
Kingbright SC03-12EWA	1	20 mA	14-DIP	7.62 mm	0.3 "	7-Segment	Red	627 nm	0.24 in	10.16 mm	6.1 mm	0.75 in	0.4 in	19.06 mm	Common Cathode	2 V	0.3 in	7.62 mm	75 mw	8.1 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SC03-12 Series

Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Cathode 1.85V 20mA 0.750" H x 0.400" W x 0.240" D (19.06mm x 10.16mm x 6.10mm) 14-DIP (0.300", 7.62mm)
