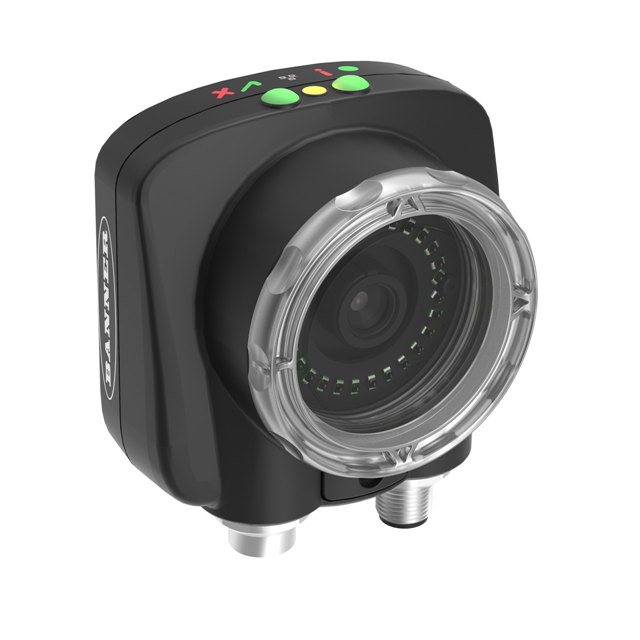

IVU2PRBR06

Active

BANNER ENGINEERING

IVU PLUS BCR GEN2 REMOTE SENSOR WITH ETHERNET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIVU Plus Sensors Instruction Manual

IVU2PRBR06

Active

BANNER ENGINEERING

IVU PLUS BCR GEN2 REMOTE SENSOR WITH ETHERNET

Deep-Dive with AI

DocumentsIVU Plus Sensors Instruction Manual

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IVU2PRBR06

Image Type	Monochrome
Ingress Protection	IP67 - Dust Tight, Waterproof
Light Source	Integrated (Red)
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Resolution	0.4 MP, 360960 Pixels
Resolution [x]	752
Resolution [y]	480
Sensor Type	CMOS
Termination Style	Cable with Connector
Type	Imaging Camera
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

IVU2PR Series

Part	Sensor Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Termination Style	Resolution	Resolution [x]	Resolution [y]	Type	Ingress Protection	Operating Temperature [Max]	Image Type	Light Source
BANNER ENGINEERING IVU2PRCW08	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Color	Integrated (White)
BANNER ENGINEERING IVU2PRGW12	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (White)
BANNER ENGINEERING IVU2PRGX06	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome
BANNER ENGINEERING IVU2PRGX25	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome
BANNER ENGINEERING IVU2PRBR06	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (Red)
BANNER ENGINEERING IVU2PRGI08	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (Infrared)
BANNER ENGINEERING IVU2PRGR12	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (Red)
BANNER ENGINEERING IVU2PRGR16	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (Red)
BANNER ENGINEERING IVU2PRGW08	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (White)
BANNER ENGINEERING IVU2PRGI12	CMOS	30 VDC	10 VDC	Chassis Mount	Cable with Connector	0.4 MP 360960 Pixels	752	480	Imaging Camera	IP67 - Dust Tight Waterproof	40 °C	Monochrome	Integrated (Infrared)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1942.01
Newark	Each	1	$ 1971.00

Description

General part information

IVU2PR Series

Imaging Camera Monochrome CMOS Chassis Mount

Documents

Technical documentation and resources

IVU Plus Sensors Instruction Manual

Datasheet
