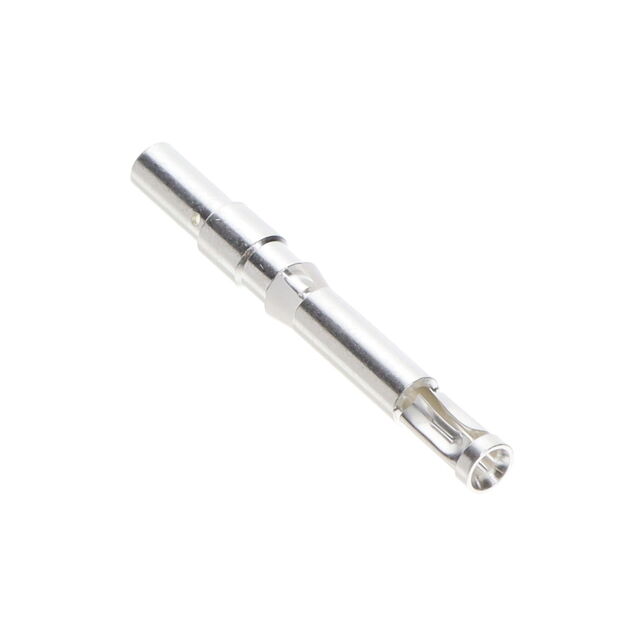

CONT-JL05-12S-C1-10

Active

JAE Electronics

CONTACT SOCKET 12-16AWG CRIMP

Search across all available documentation for this part.

Active

JAE Electronics

CONTACT SOCKET 12-16AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Size	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Type	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Contact Finish
JAE Electronics CONT-JL05-08S-C2-A528G-H	8	Copper Alloy	12 AWG	10 AWG	Machined Signal	3.5 mm˛	5.5 mm˛	Socket	Crimp
JAE Electronics CONT-JL05-16S-C2-A528G-H	16	Copper Alloy	20 AWG	16 AWG	Machined Signal			Socket	Crimp	1.25 mm²	0.5 mm²
JAE Electronics CONT-JL05-12S-C1-10	12	Copper Alloy	16 AWG	12 AWG	Machined Signal			Socket	Crimp	3.5 mm²	1.25 mm²	Silver
JAE Electronics CONT-JL05-08S-C1-10	8	Copper Alloy	10 AWG	8 AWG	Machined Signal	5.5 mm˛	8 mm˛	Socket	Crimp			Silver
JAE Electronics CONT-JL05-08S-C2-10	8	Copper Alloy	12 AWG	10 AWG	Machined Signal	3.5 mm˛	5.5 mm˛	Socket	Crimp			Silver
JAE Electronics CONT-JL05-08P-C1-10	8	Copper Alloy	10 AWG	8 AWG	Machined Signal	5.5 mm˛	8 mm˛	Pin	Crimp			Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact 12-16 AWG Size 12 Crimp Silver
