AS5261-HMFM

Active

ams-OSRAM USA INC.

SENSOR ANGLE 360DEG SMD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR ANGLE 360DEG SMD

Technical Specifications

Parameters and characteristics for this part

Specification	AS5261-HMFM

Actuator Type	External Magnet, Not Included
For Measuring	Angle
Mounting Type	Surface Mount
Output	PWM

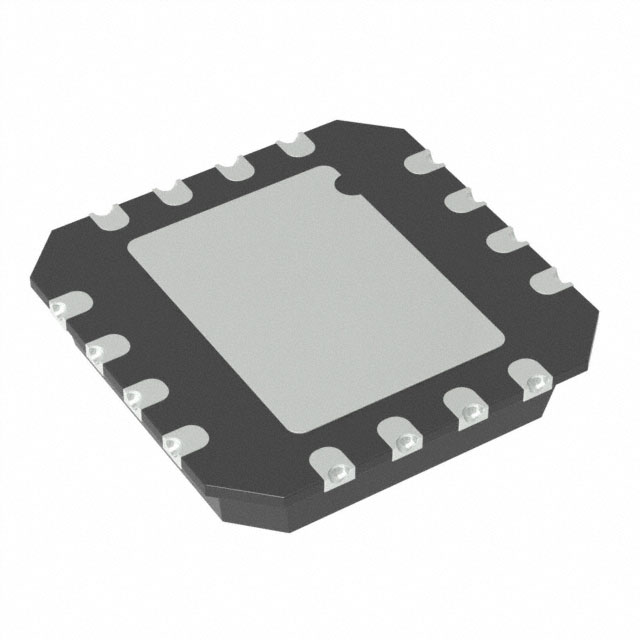

Package / Case	16-VQFN Exposed Pad
Rotation Angle - Electrical, Mechanical [Max]	360 °
Rotation Angle - Electrical, Mechanical [Min]	0 °
Supplier Device Package	16-MLF (6x6)
Technology	Hall Effect
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	For Measuring	Technology	Rotation Angle - Electrical, Mechanical [Max]	Rotation Angle - Electrical, Mechanical [Min]	Supplier Device Package	Output	Package / Case	Mounting Type	Actuator Type	Termination Style
ams-OSRAM USA INC. AS5261-HMFM	4.5 V	5.5 V	Angle	Hall Effect	360 °	0 °	16-MLF (6x6)	PWM	16-VQFN Exposed Pad	Surface Mount	External Magnet Not Included	SMD (SMT) Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 17.49
	Digi-Reel®	1	$ 17.49
	Tape & Reel (TR)	500	$ 9.47

General part information

Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab
