A20XSR20XSR36R102A

Active

JST Sales America Inc.

JUMPER 20XSR-36S - 20XSR-36S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 20XSR-36S - 20XSR-36S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Length	Length	Length	Number of Rows	Number of Positions	Color	Contact Finish	Pitch - Connector	Pitch - Connector	Cable Termination	Length	Length [x]	Length [x]	Length [x]
JST Sales America Inc. A20XSR20XSR36R152B	Socket to Socket	152.4 mm	6 "	0.5 '	1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC
JST Sales America Inc. A20XSR20XSR36R51B	Socket to Socket	50.8 mm	2 "		1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC	0.167 '
JST Sales America Inc. A20XSR20XSR36R254B	Socket to Socket	254 mm	10 in		1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC	0.833 ft
JST Sales America Inc. A20XSR20XSR36R254A	Socket to Socket Reversed	254 mm	10 in		1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC	0.833 ft
JST Sales America Inc. A20XSR20XSR36R102B	Socket to Socket				1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A20XSR20XSR36R102A	Socket to Socket Reversed				1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC		4 "	0.333 ft	101.6 mm
JST Sales America Inc. A20XSR20XSR36R203A	Socket to Socket Reversed	203.2 mm	8 in		1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC	0.667 ft
JST Sales America Inc. A20XSR20XSR36R152A	Socket to Socket Reversed	152.4 mm	6 "	0.5 '	1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC
JST Sales America Inc. A20XSR20XSR36R295B	Socket to Socket				1	20	Individual Red	Tin	0.024 "	0.6 mm	IDC		11.61 "	0.968 '	295 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 4.43

General part information

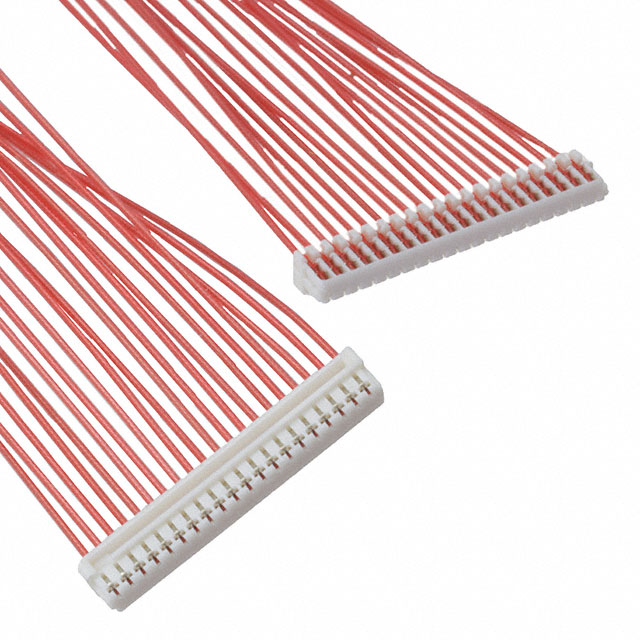

20 Position Cable Assembly Rectangular Socket to Socket, Reversed 0.333' (101.60mm, 4.00")
