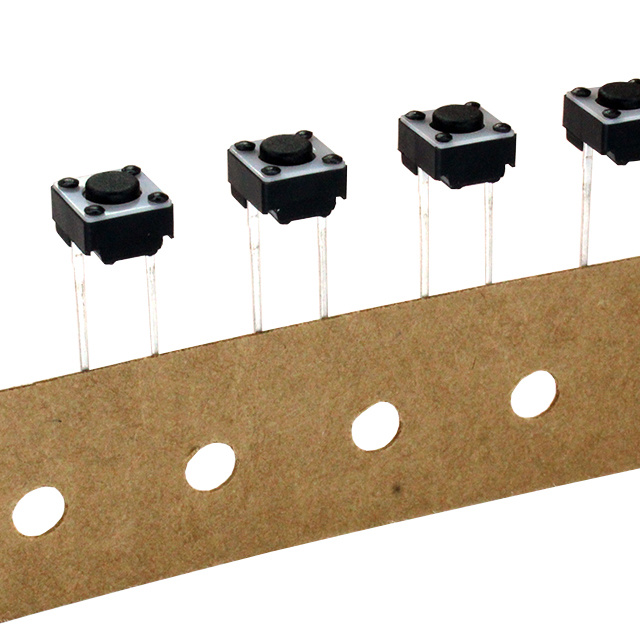

STK4.3LF160

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Search across all available documentation for this part.

Active

CIT Relay and Switch

SWITCH TACTILE SPST-NO 0.05A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	STK4.3LF160

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Polybutylene Terephthalate (PBT)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 48 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6.2 mm
Outline [y]	6.2 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Type	Termination Style	Illumination	Actuator Material	Ingress Protection	Contact Rating @ Voltage	Operating Force	Switch Function	Mounting Type	Switch Travel	Outline [y]	Outline [x]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Actuator Height off PCB, Vertical [z]
CIT Relay and Switch STK4.3LF260	Standard	PC Pin	Non-Illuminated	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	0.05 A 48 VDC	260 gf	Off-Mom	Through Hole	0.25 mm	6.2 mm	6.2 mm	SPST-NO	85 °C	-40 °C	Top Actuated	4.3 mm
CIT Relay and Switch STK4.3LF160	Standard	PC Pin	Non-Illuminated	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	0.05 A 48 VDC		Off-Mom	Through Hole	0.25 mm	6.2 mm	6.2 mm	SPST-NO	85 °C	-40 °C	Top Actuated	4.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
