H2105A01

Active

Harwin Inc.

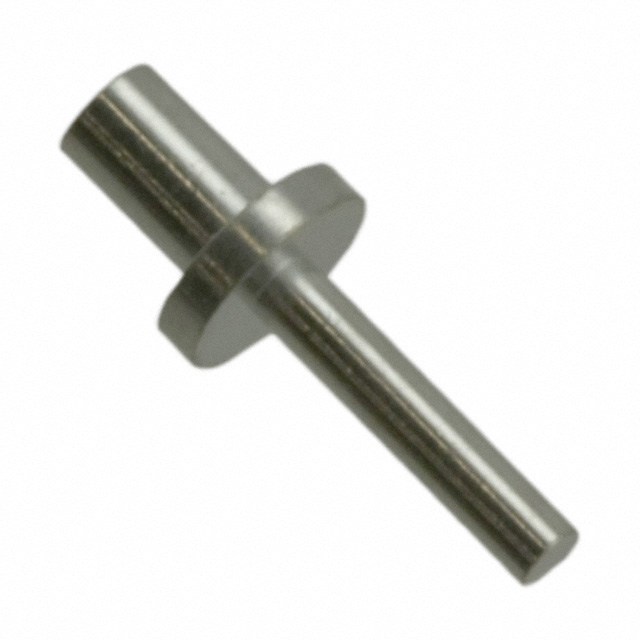

TERMINAL, TURRET, 1.41MM, NON INSULATED ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

TERMINAL, TURRET, 1.41MM, NON INSULATED ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	H2105A01

Board Thickness	1.6 mm
Board Thickness	0.063 in
Contact Finish	Tin
Contact Material	Brass
Flange Diameter [diameter]	2.39 mm
Flange Diameter [diameter]	0.094 in
Insulation	Non-Insulated
Length - Above Flange [x]	3.96 mm
Length - Above Flange [x]	0.156 in
Length - Below Flange [x]	2.11 mm
Length - Below Flange [x]	0.083 in
Length - Overall [x]	6.58 mm
Length - Overall [x]	0.259 in
Mounting Hole Diameter [Max] [diameter]	0.056 in, 1.42 mm
Mounting Hole Diameter [Min] [diameter]	1.32 mm, 0.052 in
Mounting Type	Through Hole
Pin Size - Above Flange [diameter]	0.81 mm
Pin Size - Above Flange [diameter]	0.032 in
Terminal Style	Single End
Terminal Type	PC Pin
Termination	Swage

Part	Board Thickness	Board Thickness	Length - Below Flange [x]	Length - Below Flange [x]	Termination	Length - Above Flange [x]	Length - Above Flange [x]	Insulation	Terminal Type	Contact Material	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Style	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]
Harwin Inc. H2105-01	1.6 mm	0.063 in	5.05 mm	0.199 in	Swage	3.96 mm	0.156 in	Non-Insulated	PC Pin	Brass	2.39 mm	0.094 in	0.056 in 1.42 mm	0.052 in 1.32 mm	Through Hole	Tin	0.375 "	9.53 mm	0.81 mm	0.032 in	Double End
Harwin Inc. H2105A01	1.6 mm	0.063 in	2.11 mm	0.083 in	Swage	3.96 mm	0.156 in	Non-Insulated	PC Pin	Brass	2.39 mm	0.094 in	0.056 in 1.42 mm	0.052 in 1.32 mm	Through Hole	Tin	0.259 in		0.81 mm	0.032 in	Single End	6.58 mm
Harwin Inc. H2105B01	1.6 mm	0.063 in	6.43 mm	0.253 in	Swage			Non-Insulated	PC Pin	Brass	2.39 mm	0.094 in	0.056 in 1.42 mm	0.052 in 1.32 mm	Through Hole	Tin	0.273 in				Single End	6.93 mm	0.81 mm	0.032 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PC Pin Terminal Connector Through Hole Tin 0.032" (0.81mm) Dia
