EP4CGX15BF14C8N

Active

Altera

IC FPGA 72 I/O 169FBGA

Search across all available documentation for this part.

Active

Altera

IC FPGA 72 I/O 169FBGA

Technical Specifications

Parameters and characteristics for this part

Specification	EP4CGX15BF14C8N

Mounting Type	Surface Mount
Number of I/O	72
Number of LABs/CLBs	900
Number of Logic Elements/Cells	14400
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	169-LBGA

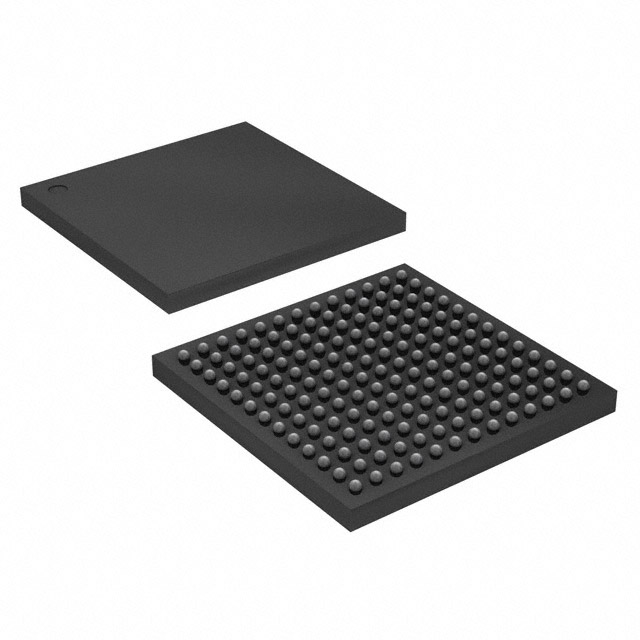

Supplier Device Package	169-FBGA (14x14)
Total RAM Bits	552960 Bits
Voltage - Supply [Max]	1.24 V
Voltage - Supply [Min]	1.16 V

Part	Number of LABs/CLBs	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Total RAM Bits	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of Logic Elements/Cells	Number of I/O
Altera EP4CGX15BF14C8N	900	0 °C	85 °C	169-FBGA (14x14)	169-LBGA	552960 Bits	1.24 V	1.16 V	Surface Mount	14400	72
Altera EP4CGX15BF14C8	900	0 °C	85 °C	169-FBGA (14x14)	169-LBGA	552960 Bits	1.24 V	1.16 V	Surface Mount	14400	72

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 35.52

General part information

Cyclone® IV GX Field Programmable Gate Array (FPGA) IC 72 552960 14400 169-LBGA
