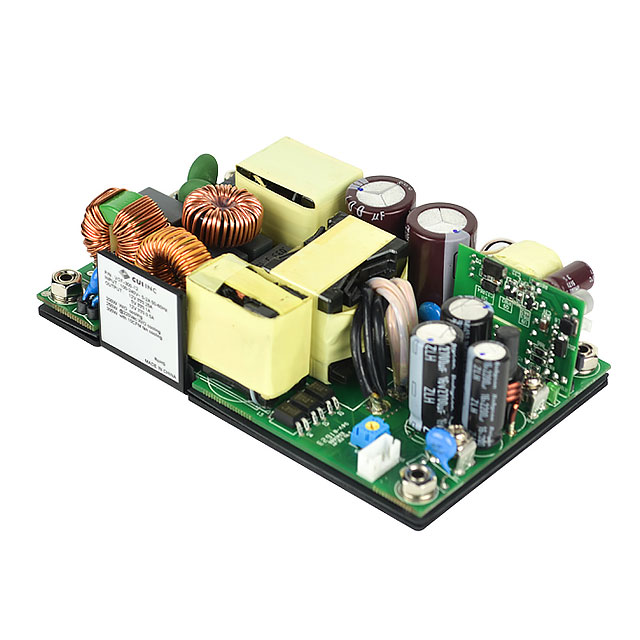

VOF-300-24

Active

CUI Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Search across all available documentation for this part.

VOF-300-24

Active

CUI Inc.

AC/DC CONVERTER 24V 200W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VOF-300-24

Applications	ITE (Commercial)
Approval Agency	IEC, EN, TUV, UL, CB Scheme, SIQ
Current - Output 1	8.33 A
Efficiency	93.5 %
Features	Standby Output, Universal Input, PFC, Adjustable Output, Remote On/Off, Remote Sense
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Power (Watts)	300 W
Power (Watts)	200 W
Size / Dimension [x]	127 mm
Size / Dimension [x]	5 in
Size / Dimension [y]	76.2 mm
Size / Dimension [y]	3 "
Size / Dimension [z]	35.1 mm
Size / Dimension [z]	1.38 in
Standard Number	60950-1, 61000-6-2, 61000-6-1
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

VOF-300 Series

Part	Current - Output 1	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Number of Outputs	Features	Voltage - Input [Min]	Voltage - Input [Max]	Type	Applications	Standard Number	Approval Agency	Mounting Type	Efficiency	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]
CUI Inc. VOF-300-48	4.17 A	3000 V	-40 °C	80 ¯C	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	48 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Open Frame	ITE (Commercial)	60950-1 61000-6-1 61000-6-2	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	94 %	300 W	200 W
CUI Inc. VOF-300-48-CNF	4.17 A	3000 V	-40 °C	80 ¯C		136 mm	1.59 "		3.46 "	5.35 "	48 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Enclosed	ITE (Commercial)	60950-1 61000-6-1 61000-6-2	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	94 %	300 W	200 W	40.4 mm	88 mm
CUI Inc. VOF-300-24	8.33 A	3000 V	-40 °C	80 ¯C	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	24 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Open Frame	ITE (Commercial)	60950-1 61000-6-1 61000-6-2	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	93.5 %	300 W	200 W
CUI Inc. VOF-300-36-CNF	5.56 A	3000 V	-40 °C	80 ¯C		136 mm	1.59 "		3.46 "	5.35 "	36 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Enclosed	ITE (Commercial)	60950-1 61000-6-1 61000-6-2	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	93.5 %	300 W	200 W	40.4 mm	88 mm
CUI Inc. VOF-300-12	16.67 A	3000 V	-40 °C	80 ¯C	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	12 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Open Frame	ITE (Commercial)	60950-1 61000-6-1 61000-6-2	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	92.5 %	300 W	200 W
CUI Inc. VOF-300-36	5.56 A	3000 V	-40 °C	80 ¯C	35.1 mm	127 mm	1.38 in	76.2 mm	3 "	5 in	36 V	1	Adjustable Output PFC Remote On/Off Remote Sense Standby Output Universal Input	90 VAC	264 VAC	Open Frame	ITE (Commercial)	60950-1	CB Scheme EN IEC SIQ TUV UL	Chassis Mount	93.5 %	300 W	200 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 125.99
		5	$ 118.69
		20	$ 112.75
		40	$ 109.89
		60	$ 108.25

Description

General part information

VOF-300 Series

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
