H3CKH-4018M
ActiveAssmann WSW Components
IDC CBL - HHKC40H/AE40M/HHPK40H
Deep-Dive with AI
Search across all available documentation for this part.
H3CKH-4018M
ActiveAssmann WSW Components
IDC CBL - HHKC40H/AE40M/HHPK40H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H3CKH-4018M |
|---|---|
| Cable Termination | IDC |
| Color | Ribbon, Multiple |
| Connector Type | Socket to Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Features | Polarizing Key |
| Length [x] | 457.2 mm |
| Length [x] | 1.5 ft |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch - Cable | 0.05 " |
| Pitch - Cable | 1.27 mm |
| Pitch - Connector | 0.1 in |
| Pitch - Connector | 2.54 mm |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.14 | |
| 10 | $ 6.46 | |||
| 25 | $ 6.10 | |||
| 50 | $ 5.95 | |||
| 100 | $ 5.65 | |||
| 250 | $ 5.06 | |||
| 500 | $ 4.76 | |||
| 1000 | $ 4.17 | |||
| 2500 | $ 3.96 | |||
Description
General part information
H3CKH-40 Series

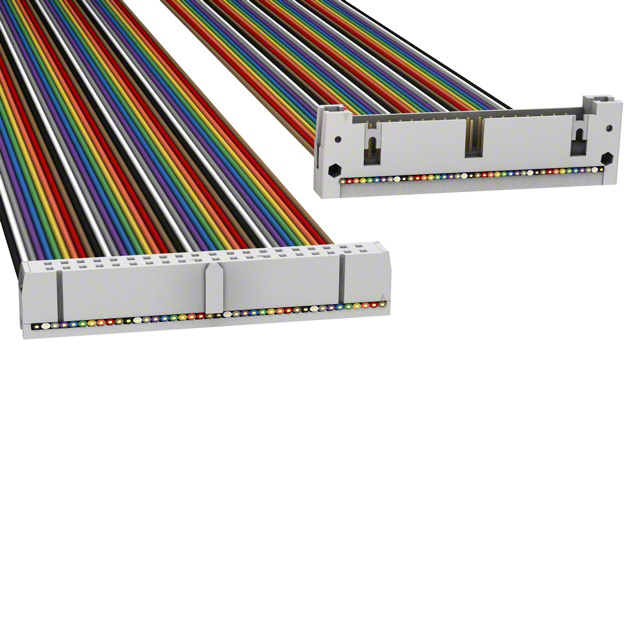

40 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)
