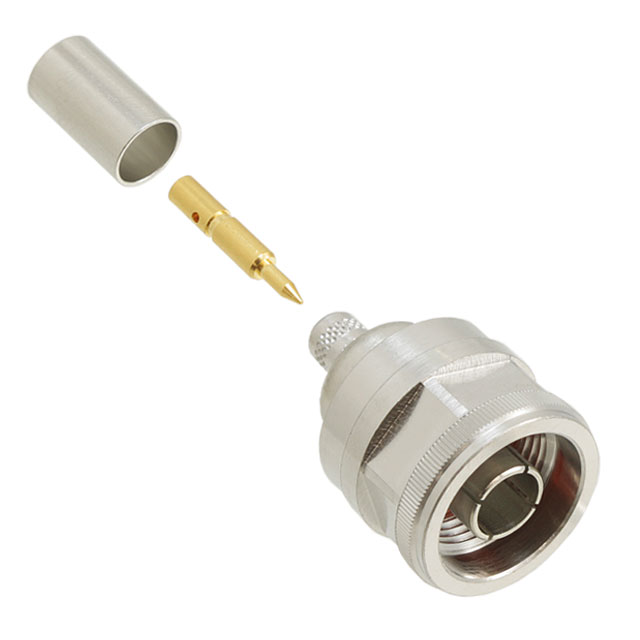

N-TYPE STRAIGHT CRIMP PLUG RG-8X TIMES LMR-240 OPTIMIZED 50 OHM

Search across all available documentation for this part.

Active

Amphenol RF

N-TYPE STRAIGHT CRIMP PLUG RG-8X TIMES LMR-240 OPTIMIZED 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	172135-10

Body Finish	White Bronze
Body Material	Brass
Cable Group	LMR-240, Belden 9258, RG-8X
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Ingress Protection	Weatherproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Cable Group	Impedance	Number of Ports	Dielectric Material	Center Contact Plating	Mating Cycles	Voltage Rating	Insertion Loss	Ingress Protection	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Housing Color	Body Finish	Center Contact Material	Connector Style	Includes	Body Material	Contact Termination	Frequency - Max [Max]	Connector Type
Amphenol RF 172135-10	Belden 9258 LMR-240 RG-8X	50 Ohms	1	Polytetrafluoroethylene (PTFE)	Gold	500	1500 V	0.15 dB	Weatherproof	Free Hanging (In-Line)	-65 ░C	165 °C	Crimp	Silver	White Bronze	Brass	N Type	1 Connector 1 Contact 1 Ferrule	Brass	Crimp	11 GHz	Male Pin Plug
