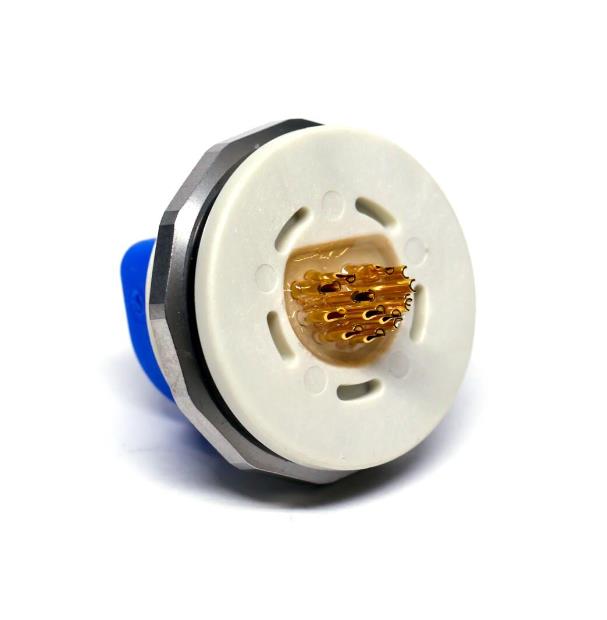

P1RNM14B1R

Active

Amphenol Alden Products Company

CONN RCPT FMALE 14P GOLD SLD CUP

Search across all available documentation for this part.

Active

Amphenol Alden Products Company

CONN RCPT FMALE 14P GOLD SLD CUP

Technical Specifications

Parameters and characteristics for this part

Specification	P1RNM14B1R

Applications	Medical
Color	Blue, White
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Push-Pull
Ingress Protection	IP64/IP67 - Dust Tight, Water Resistant, Waterproof
Insert Material	Nylon, Polyamide (PA)
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	14
Orientation	1
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	300 VDC

Part	Primary Material	Applications	Orientation	Fastening Type	Contact Material	Ingress Protection	Connector Type	Shielding	Contact Finish - Mating	Color	Insert Material	Voltage Rating	Number of Positions	Mounting Feature
Amphenol Alden Products Company P1RNM14B1F	Plastic	Medical	1	Push-Pull	Copper Alloy	IP64/IP67 - Dust Tight Water Resistant Waterproof	Receptacle Female Sockets	Unshielded	Gold	Blue White	Nylon Polyamide (PA)	300 VDC	14	Bulkhead - Rear Side Nut
Amphenol Alden Products Company P1RNM14B1R	Plastic	Medical	1	Push-Pull	Copper Alloy	IP64/IP67 - Dust Tight Water Resistant Waterproof	Receptacle Female Sockets	Unshielded	Gold	Blue White	Nylon Polyamide (PA)	300 VDC	14	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Circular Connector Receptacle, Female Sockets Solder Cup
