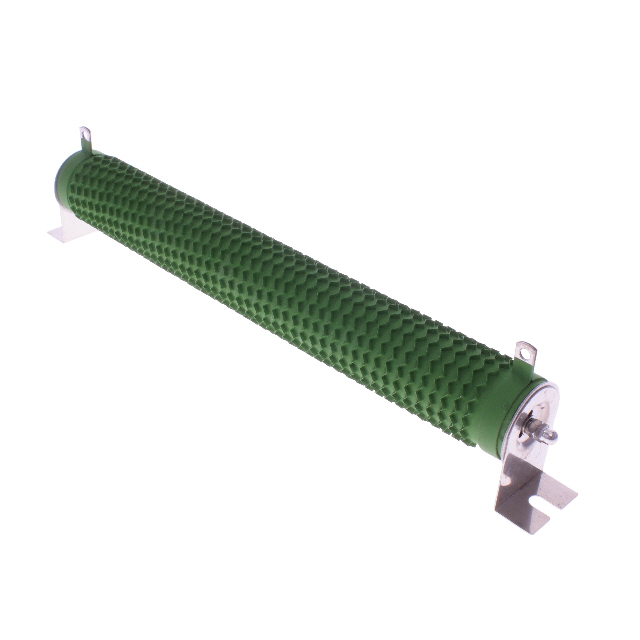

TE600B33RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 33 OHM 5% 600W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TE600B33RJ

Active

TE Connectivity Passive Product

RES CHAS MNT 33 OHM 5% 600W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TE600B33RJ

Coating, Housing Type	Silicone Coated
Composition	Wirewound
Features	Flame Proof, Safety
Lead Style	Solder Lugs
Mounting Feature	Brackets
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Tubular
Power (Watts)	600 W
Resistance	33 Ohms
Size / Dimension [diameter]	1.575 "
Size / Dimension [diameter]	40 mm
Size / Dimension [x]	13.583 "
Size / Dimension [x]	345 mm
Temperature Coefficient	440 ppm/°C
Tolerance	5 %

TE600 Series

Part	Temperature Coefficient	Mounting Feature	Tolerance	Resistance	Coating, Housing Type	Power (Watts)	Features	Operating Temperature [Max]	Operating Temperature [Min]	Lead Style	Package / Case	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [diameter]	Composition
TE Connectivity Passive Product TE600B150RJ	440 ppm/°C	Brackets	5 %	150 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B1R8J	440 ppm/°C	Brackets	5 %	1.8 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B47RJ	440 ppm/°C	Brackets	5 %	47 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B56RJ	440 ppm/°C	Brackets	5 %	56 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B270RJ	440 ppm/°C	Brackets	5 %	270 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B3R9J	440 ppm/°C	Brackets	5 %	3.9 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B68RJ	440 ppm/°C	Brackets	5 %	68 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B8R2J	440 ppm/°C	Brackets	5 %		Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B33RJ	440 ppm/°C	Brackets	5 %	33 Ohms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound
TE Connectivity Passive Product TE600B1K8J	440 ppm/°C	Brackets	5 %	1.8 kOhms	Silicone Coated	600 W	Flame Proof Safety	155 °C	-55 °C	Solder Lugs	Radial Tubular	13.583 "	1.575 "	345 mm	40 mm	Wirewound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 68.90
		10	$ 57.88
		25	$ 56.10
		50	$ 53.15
		100	$ 48.73

Description

General part information

TE600 Series

33 Ohms ±5% 600W Wirewound Chassis Mount Resistor
