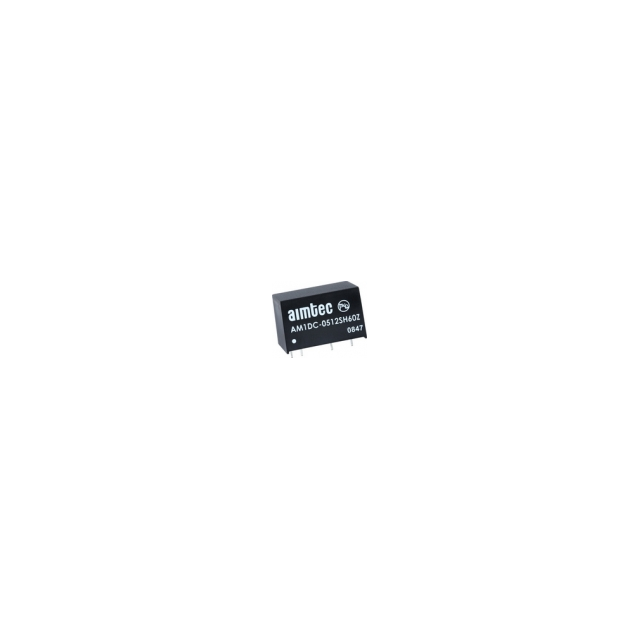

AM1DC-0512SH60Z
Activeaimtec
DC DC CONVERTER 12V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1DC-0512SH60Z
Activeaimtec
DC DC CONVERTER 12V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1DC-0512SH60Z |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) | 83.3 mA |
| Efficiency | 76 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 6000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 6.48 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.41 | |||
| 50 | $ 5.20 | |||
| 100 | $ 5.01 | |||
| 250 | $ 4.76 | |||
| 500 | $ 4.57 | |||
| 1000 | $ 4.40 | |||
Description
General part information
AM1DC Series
Isolated Module DC DC Converter 1 Output 12V 83.3mA 4.5V - 5.5V Input
