C1AXS-1436G

Active

CW Industries

IDC CABLE - CSC14S/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CSC14S/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Connector Type	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Number of Rows	Color	Cable Termination	Pitch - Cable	Pitch - Cable	Number of Positions
CW Industries C1AXS-1036M	10	Socket to Cable	Unshielded	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	2	Multiple Ribbon	IDC	0.05 "	1.27 mm
CW Industries C1AXS-1636M		Socket to Cable	Unshielded	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	2	Multiple Ribbon	IDC	0.05 "	1.27 mm	16
CW Industries C1AXS-1436G	14	Socket to Cable	Unshielded	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	2		IDC	0.05 "	1.27 mm
CW Industries C1AXS-1036G	10	Socket to Cable	Unshielded	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	2		IDC	0.05 "	1.27 mm
CW Industries C1AXS-1636G		Socket to Cable	Unshielded	2.54 µm	100 µin	Tin	0.1 in	2.54 mm	3 ft	914.4 mm	2		IDC	0.05 "	1.27 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

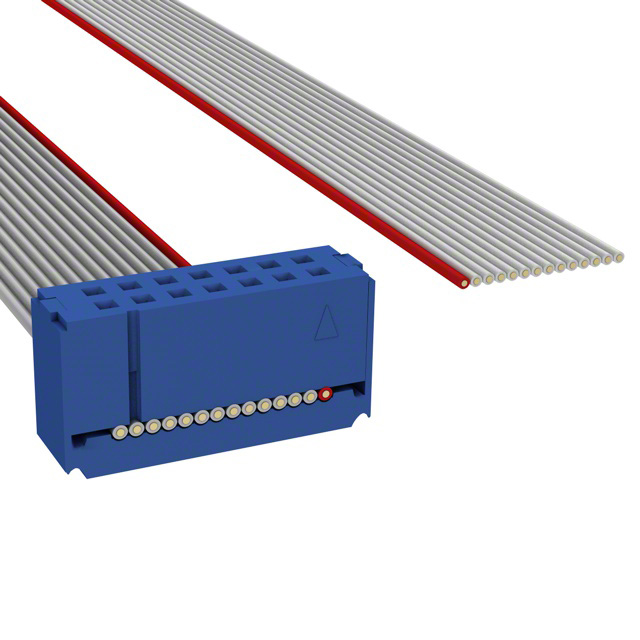

14 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
