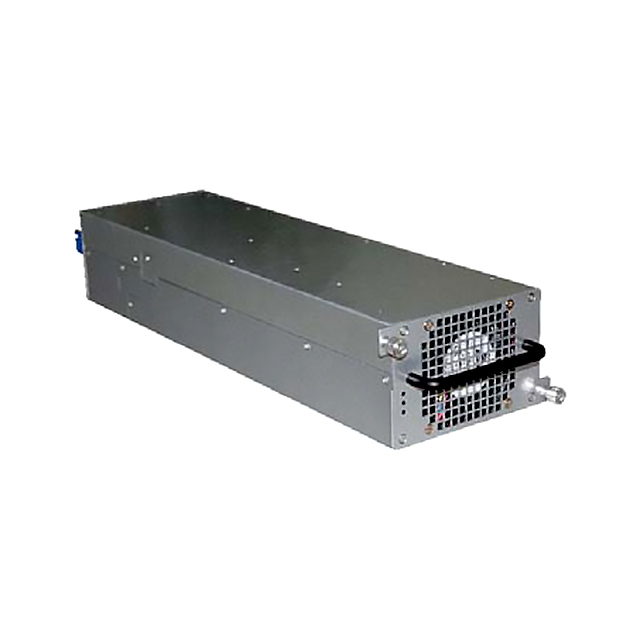

D2U5T-H3-7000-54-HU4C

Active

Murata Power Solutions Inc.

AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 7 KW, 54 V, 129.6 A

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, FIXED, 7 KW, 54 V, 129.6 A

Technical Specifications

Parameters and characteristics for this part

Specification	D2U5T-H3-7000-54-HU4C

Applications	ITE (Commercial)
Current - Output 1	129.6 A
Efficiency	95 %
Features	Remote Sense, Hot Swappable, PMBus™, I2C Bus Interface, Load Sharing, PFC, Standby Output
Mounting Type	Rack Mount
Number of Outputs	1
Power (Watts)	7000 W
Size / Dimension [x]	455.9 mm
Size / Dimension [x]	18 in
Size / Dimension [y]	5.1 "
Size / Dimension [y]	129.6 mm
Size / Dimension [z]	77.2 mm
Size / Dimension [z]	3.04 in
Type	Front End
Voltage - Input [Max]	264 VAC, 525 VAC
Voltage - Input [Min]	320 VAC, 180 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	54 V

Part	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Number of Outputs	Current - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Type	Voltage - Output 1	Applications	Mounting Type	Power (Watts)
Murata Power Solutions Inc. D2U5T-H3-7000-54-HU4C	Hot Swappable I2C Bus Interface Load Sharing PFC PMBus™ Remote Sense Standby Output	180 VAC 320 VAC	264 VAC 525 VAC	3000 V	1	129.6 A	5.1 "	455.9 mm	129.6 mm	77.2 mm	3.04 in	18 in	95 %	Front End	54 V	ITE (Commercial)	Rack Mount	7000 W
Murata Power Solutions Inc. D2U5T-H3-7000-41-HU3EC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 2641.57
Newark	Each	25	$ 2693.32

General part information

Front End AC DC Converters 1 Output 54V 180 ~ 264 VAC, 320 ~ 525 VAC (3 Phase) Input
