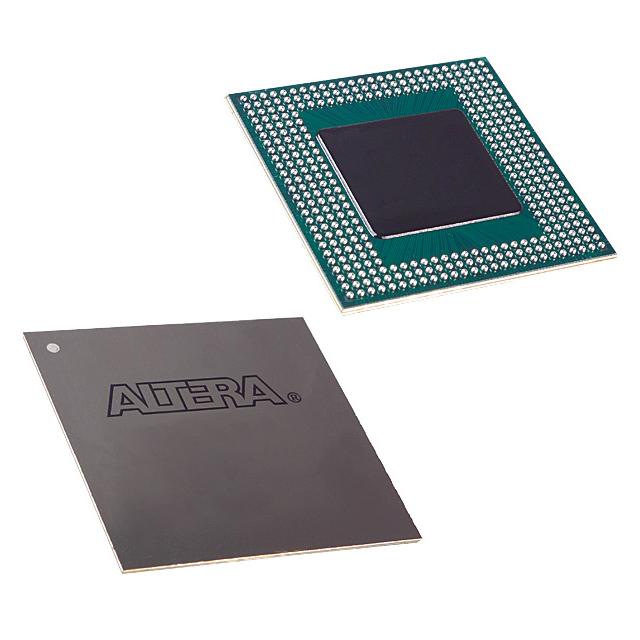

EPF10K100ABC356-2

Obsolete

Altera

IC FPGA 274 I/O 356BGA

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 274 I/O 356BGA

Technical Specifications

Parameters and characteristics for this part

Specification	EPF10K100ABC356-2

Mounting Type	Surface Mount
Number of Gates	158000
Number of I/O	274
Number of LABs/CLBs	624
Number of Logic Elements/Cells	4992
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	356-LBGA
Supplier Device Package	356-BGA (35x35)
Total RAM Bits	24576 Bits
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Total RAM Bits	Package / Case	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Number of LABs/CLBs	Mounting Type	Number of Gates	Number of Logic Elements/Cells	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package [y]	Supplier Device Package [x]
Altera EPF10K100EBC356-1	49152 bits	356-LBGA	274	70 °C	0 °C	624	Surface Mount	257000	4992	356-BGA (35x35)	2.375 V	2.625 V
Altera EPF10K100ABI356-2	24576 Bits	356-LBGA	274	85 °C	-40 °C	624	Surface Mount	158000	4992	356-BGA (35x35)	3 V	3.6 V
Altera EPF10K100EFC256-3N	49152 bits	256-BGA	191	70 °C	0 °C	624	Surface Mount	257000	4992	256-FBGA (17x17)	2.375 V	2.625 V
Altera EPF10K100ARC240-2	24576 Bits	240-BFQFP Exposed Pad	189	70 °C	0 °C	624	Surface Mount	158000	4992	240-RQFP (32x32)	3 V	3.6 V
Altera EPF10K100EQC240-1X	49152 bits	240-BFQFP	189	70 °C	0 °C	624	Surface Mount	257000	4992	240-PQFP (32x32)	2.375 V	2.625 V
Altera EPF10K100EBC356-1X	49152 bits	356-LBGA	274	70 °C	0 °C	624	Surface Mount	257000	4992	356-BGA (35x35)	2.375 V	2.625 V
Altera EPF10K100EFC256-2X		256-BGA	191	70 °C	0 °C	624	Surface Mount			256-FBGA (17x17)	2.375 V	2.625 V
Altera EPF10K100EQC208-2	49152 bits	208-BFQFP	147	70 °C	0 °C	624	Surface Mount	257000	4992	208-PQFP (28x28)	2.375 V	2.625 V
Altera EPF10K100ABC356-2	24576 Bits	356-LBGA	274	70 °C	0 °C	624	Surface Mount	158000	4992	356-BGA (35x35)	3 V	3.6 V
Altera EPF10K100ABC600-1	24576 Bits	600-BGA	406	70 °C	0 °C	624	Surface Mount	158000	4992	600-BGA	3 V	3.6 V	45	45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FLEX-10KA® Field Programmable Gate Array (FPGA) IC 274 24576 4992 356-LBGA
