G125-FW20150L94

Active

Harwin Inc.

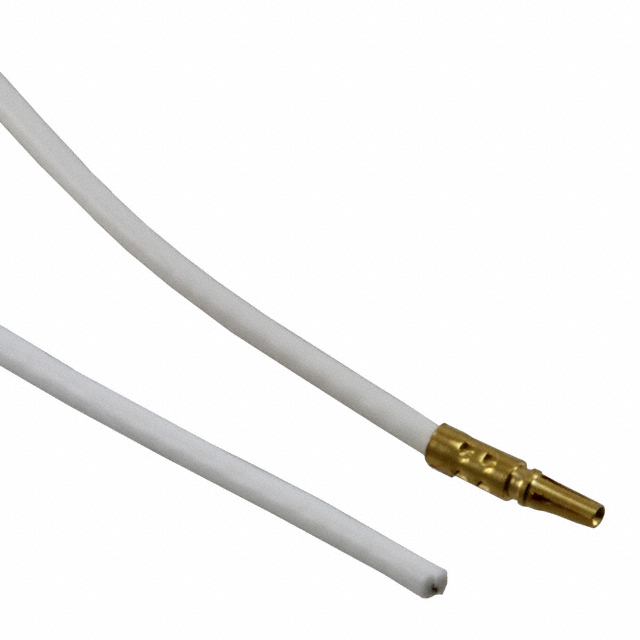

FEMALE CONTACT WITH 28AWG WIRE, 150MM, SINGLE-END ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

FEMALE CONTACT WITH 28AWG WIRE, 150MM, SINGLE-END ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Wire Gauge	Contact End	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Conductors	Color	Contact Finish	Length [x]	Length [x]
Harwin Inc. G125-FW10150F94	149.86 mm	5.9 "	26 AWG	Socket to Socket	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW20300F94	300 mm	11.8 in	28 AWG	Socket to Socket	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW20150L94	149.86 mm	5.9 "	28 AWG	Socket to Cable (Round)	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW20450L94			28 AWG	Socket to Cable (Round)	0.2 µm	8 çin	1	1	White	Gold	450 mm	17.7 in
Harwin Inc. G125-FW20150F94	149.86 mm	5.9 "	28 AWG	Socket to Socket	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW30300F94	300 mm	11.8 in	30 AWG	Socket to Socket	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW10300F94	300 mm	11.8 in	26 AWG	Socket to Socket	0.2 µm	8 çin	1	1	White	Gold
Harwin Inc. G125-FW30450L94			30 AWG	Socket to Cable (Round)	0.2 µm	8 çin	1	1	White	Gold	450 mm	17.7 in
Harwin Inc. G125-FW10450L94			26 AWG	Socket to Cable (Round)	0.2 µm	8 çin	1	1	White	Gold	450 mm	17.7 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White 28 AWG Jumper Lead Socket to Cable (Round) Gold 5.90" (149.86mm)
