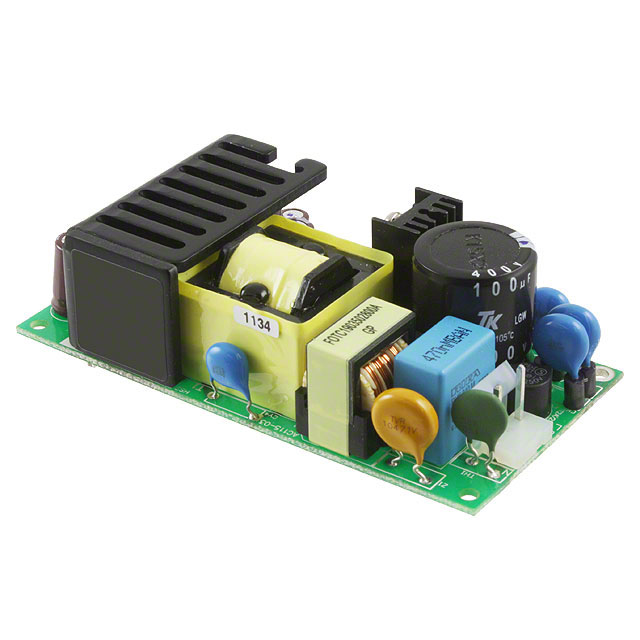

ZPT40-5245N

Obsolete

TDK-LAMBDA

AC/DC CONVERTER 5V 24V -5V 40W

Search across all available documentation for this part.

Obsolete

TDK-LAMBDA

AC/DC CONVERTER 5V 24V -5V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Efficiency	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Type	Operating Temperature [Max]	Applications	Power (Watts)	Features	Voltage - Output 2	Voltage - Isolation	Number of Outputs	Current - Output 3	Voltage - Output 1	Current - Output 2	Voltage - Output 3
TDK-LAMBDA ZPT40-51515N	75 %	Chassis Mount	3.2 A	90 VAC	264 VAC	CE	4 in	2 in	50.8 mm	1.07 "	101.6 mm	27.1 mm	Open Frame	70 °C	ITE (Commercial)	40 W	Adjustable Output	15 V	3000 V	3	300 mA	5 V	1.5 A	-15 V
TDK-LAMBDA ZPT40-5245N	75 %	Chassis Mount	3.2 A	90 VAC	264 VAC	CE	4 in	2 in	50.8 mm	1.07 "	101.6 mm	27.1 mm	Open Frame	70 °C	ITE (Commercial)	40 W	Adjustable Output	24 V	3000 V	3	300 mA	5 V	1 A	-5 V
TDK-LAMBDA ZPT40-52412N	75 %	Chassis Mount	3.2 A	90 VAC	264 VAC	CE	4 in	2 in	50.8 mm	1.07 "	101.6 mm	27.1 mm	Open Frame	70 °C	ITE (Commercial)	40 W	Adjustable Output	24 V	3000 V	3	300 mA	5 V	1 A	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 3 Output 5V 24V -5V 90 ~ 264 VAC Input
