R2S-1224/H-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 2W DC/DC 3KV UNREG 12VIN 24VOUT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

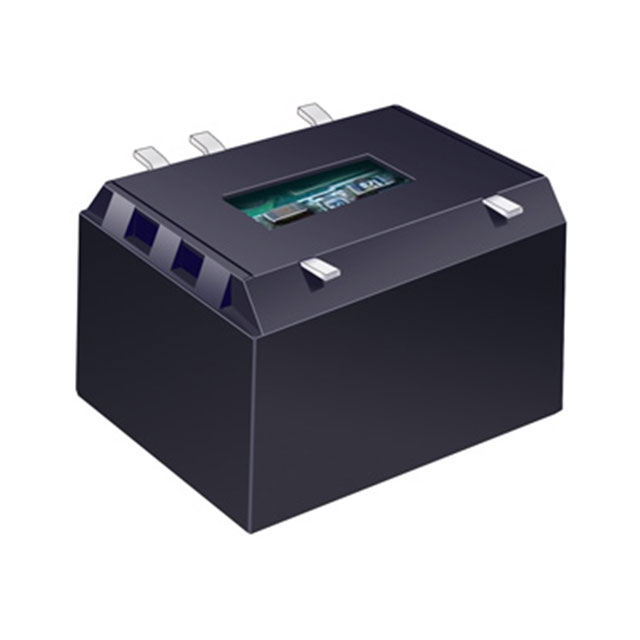

R2S-1224/H-R

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - SMD 2W DC/DC 3KV UNREG 12VIN 24VOUT

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R2S-1224/H-R

Applications	ITE (Commercial), Medical
Current - Output (Max) [Max]	83 mA
Efficiency	85 %
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SMD Module, 5 Leads
Power (Watts)	2 W
Size / Dimension [x]	12.8 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	10.7 mm
Size / Dimension [y]	0.42 "
Size / Dimension [z]	0.35 "
Size / Dimension [z]	9 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	10.8 V
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

R2S12-243.3 Series

Isolated DC/DC Converters - SMD 2W DC/DC 1kV UNREG 12Vin 15Vout

...

Part	Features	Package / Case	Package / Case	Voltage - Output 1	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Mounting Type	Power (Watts)	Type	Number of Outputs	Efficiency [Max]	Efficiency [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Isolation	Current - Output (Max) [Max]	Applications	Efficiency	Size / Dimension [y]	Size / Dimension [z]
RECOM Power R2S12-243.3/HP	SCP	10 Leads	12-SMD Module	3.3 V	26.4 V	100 °C	-40 °C	21.6 V	Surface Mount	2 W	Isolated Module	1	75 %	70 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	3000 V	606 mA	ITE (Commercial) Medical
RECOM Power R2S-1224/H-R	SCP		8-SMD Module 5 Leads	24 V	13.2 V	100 °C	-40 °C	10.8 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	3000 V	83 mA	ITE (Commercial) Medical	85 %	10.7 mm	9 mm
RECOM Power R2S-2409/HP-R	SCP		8-SMD Module 5 Leads	9 V	26.4 V	100 °C	-40 °C	21.6 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	3000 V	222 mA	ITE (Commercial) Medical	85 %	10.7 mm	9 mm
RECOM Power R2S12-2405/H-R	SCP	10 Leads	12-SMD Module	5 V	26.4 V	100 °C	-40 °C	21.6 V	Surface Mount	2 W	Isolated Module	1			0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	3000 V	400 mA	ITE (Commercial) Medical	85 %
RECOM Power R2S-1205/P	SCP		8-SMD Module 5 Leads	5 V	13.2 V	100 °C	-40 °C	10.8 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	1000 V	400 mA	ITE (Commercial)	85 %	10.7 mm	9 mm
RECOM Power R2S8-1515/P	SCP		8-SMD Module	15 V	16.5 V	100 °C	-40 °C	13.5 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	1000 V	133 mA	ITE (Commercial)	85 %	10.7 mm	9 mm
RECOM Power R2S8-1224	SCP		8-SMD Module	24 V	13.2 V	100 °C	-40 °C	10.8 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	1000 V	42 mA	ITE (Commercial)	85 %	10.7 mm	9 mm
RECOM Power R2S-053.3/P	SCP		8-SMD Module 5 Leads	3.3 V	5.5 V	100 °C	-40 °C	4.5 V	Surface Mount	2 W	Isolated Module	1			0.5 in		0.42 "	12.8 mm		0.35 "	1000 V	606 mA	ITE (Commercial)	75 %	10.7 mm	9 mm
RECOM Power R2S12-2415/H	SCP	10 Leads	12-SMD Module	15 V	26.4 V	100 °C	-40 °C	21.6 V	Surface Mount	2 W	Isolated Module	1			0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	3000 V	133 mA	ITE (Commercial) Medical	85 %
RECOM Power R2S12-153.3-R	SCP	10 Leads	12-SMD Module	3.3 V	16.5 V	100 °C	-40 °C	13.5 V	Surface Mount	2 W	Isolated Module	1	75 %	70 %	0.6 in	10.7 mm	0.42 "	15.2 mm	9 mm	0.35 "	1000 V	606 mA	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 13.08
	Digi-Reel®	1	$ 13.08
	Tape & Reel (TR)	250	$ 10.90
Newark	Each (Supplied on Full Reel)	250	$ 11.15
		500	$ 10.52
		750	$ 9.90
Sager	N/A	1	$ 13.08
		5	$ 12.66
		10	$ 12.08
		25	$ 11.71
		50	$ 11.53
		100	$ 11.20
		250	$ 10.47

Description

General part information

R2S12-243.3 Series

Isolated DC/DC Converters - SMD 2W DC/DC 1kV UNREG 12Vin 15Vout
