EK-V7-VC707-G-J

Obsolete

AMD

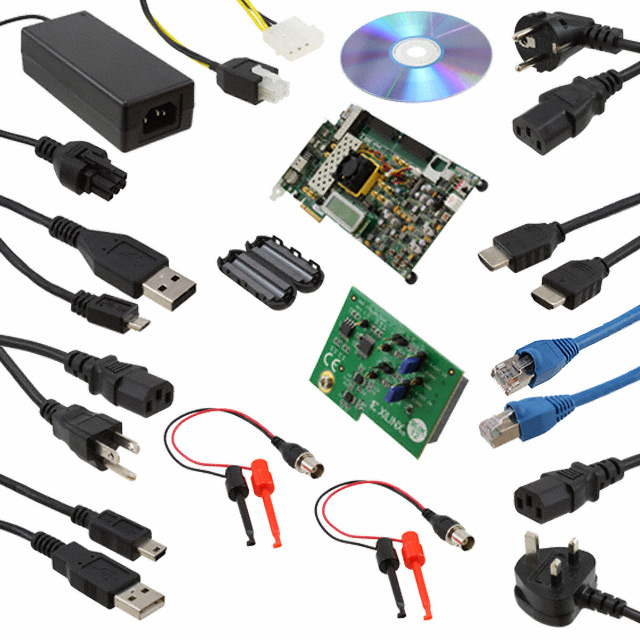

KIT EVAL VIRTEX7 VC707 JAPAN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsVC707 Eval Kit Brief

EK-V7-VC707-G-J

Obsolete

AMD

KIT EVAL VIRTEX7 VC707 JAPAN

Deep-Dive with AI

DocumentsVC707 Eval Kit Brief

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EK-V7-VC707-G-J

Contents	Board(s), Cable(s)
For Use With/Related Products	XC7VX485T
Interconnect System	FMC
Note	J = Japan version does not ship with a power supply
Platform	Virtex-7 FPGA VC707 Japan PCIe Card
Suggested Programming Environment	ISE
Utilized IC / Part	XC7VX485T

XC7VX485 Series

Part	Number of Logic Elements/Cells	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type	Number of LABs/CLBs	Total RAM Bits	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Utilized IC / Part	Platform	Interconnect System	Suggested Programming Environment	Contents	For Use With/Related Products	Note
AMD XC7VX485T-2FFG1930I	485760	1924-BBGA FCBGA	100 °C	-40 C	700	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1930-FCBGA (45x45)
AMD XC7VX485T-3FFG1157E	485760	1156-BBGA FCBGA	100 °C	0 °C	600	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1157-FCBGA (35x35)
AMD XC7VX485T-1FFG1157C	485760	1156-BBGA FCBGA	85 °C	0 °C	600	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1157-FCBGA (35x35)
AMD XC7VX485T-2FFG1927I	485760	1924-BBGA FCBGA	100 °C	-40 C	600	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1927-FCBGA (45x45)
AMD XC7VX485T-1FF1157I	485760	1156-BBGA FCBGA	100 °C	-40 C	600	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1157-FCBGA (35x35)
AMD XC7VX485T-2FF1761C	485760	1760-BBGA FCBGA	85 °C	0 °C	700	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1761-FCBGA	42.5	42.5
AMD XC7VX485T-2FFG1158C	485760	1156-BBGA FCBGA	85 °C	0 °C	350	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1158-FCBGA (35x35)
AMD CK-V7-VC7203-G-J														XC7VX485T	Virtex-7 FPGA VC7203 Japan	FMC	ISE Vivado	Board(s) Cable(s)	XC7VX485T	J = Japan version does not ship with a power supply
AMD EK-V7-VC707-G-J														XC7VX485T	Virtex-7 FPGA VC707 Japan PCIe Card	FMC	ISE	Board(s) Cable(s)	XC7VX485T	J = Japan version does not ship with a power supply
AMD XC7VX485T-L2FFG1158E	485760	1156-BBGA FCBGA	100 °C	0 °C	350	1.03 V	0.97 V	Surface Mount	37950	37969920 Bits	1158-FCBGA (35x35)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XC7VX485 Series

Virtex-7 FPGA VC707 Japan PCIe Card XC7VX485T Virtex®-7 XT FPGA Evaluation Board

Documents

Technical documentation and resources

VC707 Eval Kit Brief

Datasheet
