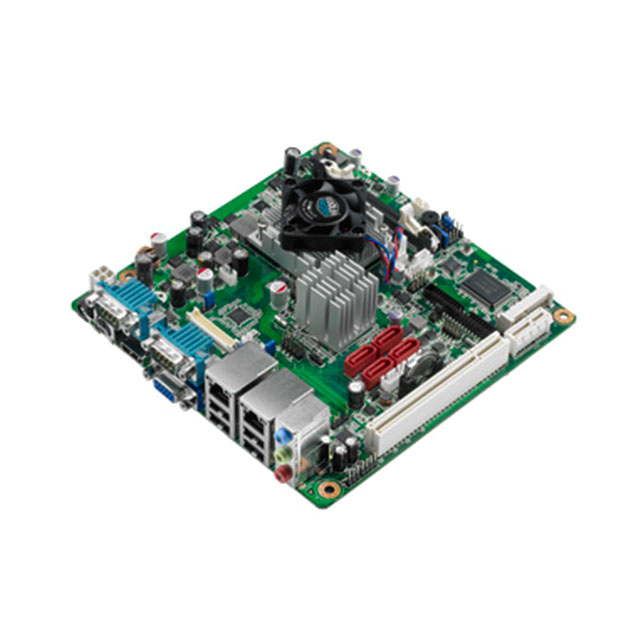

AIMB-223G2-S0A1E
ActiveAdvantech Corp
SBC 1.2GHZ 1 CORE 4GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AIMB-223G2-S0A1E
ActiveAdvantech Corp
SBC 1.2GHZ 1 CORE 4GB/0GB RAM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AIMB-223G2-S0A1E |
|---|---|
| Cooling Type | Fan |
| Core Processor | AMD G-Series T44R |
| Digital I/O Lines | 8 |
| Ethernet | 10 Mbps, 1000 Mbps, 100 Mbps |
| Form Factor | mini-ITX |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 4 GB, 0 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Speed | 1.2 GHz |
| Storage Interface | SATA 3.0 (4), CompactFlash |
| USB | USB 2.0 |
| Video Outputs | HDMI, CRT, LVDS |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 382.50 | |
Description
General part information
AIMB-223 Series
Single Board Computer 1.2GHz 1 Core 4GB/0GB RAM AMD G-Series T44R
