IS43R32400E-5BLI-TR

Active

ISSI, Integrated Silicon Solution Inc

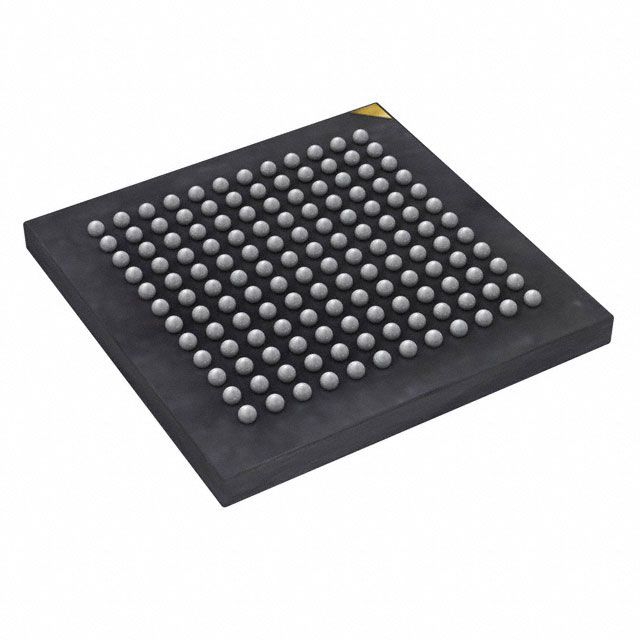

IC DRAM 128MBIT PAR 144LFBGA

Search across all available documentation for this part.

Active

ISSI, Integrated Silicon Solution Inc

IC DRAM 128MBIT PAR 144LFBGA

Technical Specifications

Parameters and characteristics for this part

Part	Memory Type	Mounting Type	Clock Frequency	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Memory Interface	Memory Organization	Package / Case	Memory Size	Supplier Device Package	Access Time	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Format	Write Cycle Time - Word, Page
ISSI, Integrated Silicon Solution Inc IS43R32400E-4BL-TR	Volatile	Surface Mount	250 MHz	16 ns	16 ns	Parallel	4M x 32	144-LFBGA	128 Mb	144-LFBGA (12x12)	700 ps	2.6 V	2.4 V	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS43R32400E-5BL	Volatile	Surface Mount	200 MHz			Parallel	4M x 32	144-LFBGA	128 Mb	144-LFBGA (12x12)	700 ps	2.7 V	2.3 V	70 °C	0 °C	DRAM	15 ns
ISSI, Integrated Silicon Solution Inc IS43R32400E-4BL	Volatile	Surface Mount	250 MHz	16 ns	16 ns	Parallel	4M x 32	144-LFBGA	128 Mb	144-LFBGA (12x12)	700 ps	2.6 V	2.4 V	70 °C	0 °C	DRAM
ISSI, Integrated Silicon Solution Inc IS43R32400E-5BLI-TR	Volatile	Surface Mount	200 MHz			Parallel	4M x 32	144-LFBGA	128 Mb	144-LFBGA (12x12)	700 ps	2.7 V	2.3 V	85 °C	-40 °C	DRAM	15 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SDRAM - DDR Memory IC 128Mbit Parallel 200 MHz 700 ps 144-LFBGA (12x12)

Technical documentation and resources

No documents available
