RU2S-D24

Active

IDEC

POWER RELAY, DPDT, 24 VDC, 10 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

RU2S-D24

Active

IDEC

POWER RELAY, DPDT, 24 VDC, 10 A, RU SERIES, SOCKET, NON LATCHING

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RU2S-D24

Approval Agency	CSA, TUV, cURus, CE
Coil Current	44.7 mA
Coil Resistance	605 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver (Ag)
Contact Rating (Current)	10 A
Load - Max Switching	2500 VA, 300 W
Mounting Type	Socketable
Must Operate Voltage	19.2 VDC
Must Release Voltage	2.4 VDC
Operate Time	20 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	20 ms
Switching Voltage [Max]	30 VDC, 250 VAC
Termination Style	Plug In

RU2S-D Series

Part	Approval Agency	Coil Resistance	Mounting Type	Coil Current	Operate Time	Switching Voltage [Max]	Must Release Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Form	Must Operate Voltage	Load - Max Switching	Contact Rating (Current)	Relay Type	Coil Voltage	Release Time	Coil Type	Termination Style
IDEC RU2S-D24	CE CSA cURus TUV	605 Ohms	Socketable	44.7 mA	20 ms	30 VDC 250 VAC	2.4 VDC	-55 °C	60 °C	Silver (Ag)	DPDT (2 Form C)	19.2 VDC	300 W 2500 VA	10 A	General Purpose	24 VDC	20 ms	Non Latching	Plug In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.66
		10	$ 9.49
		25	$ 9.07
		50	$ 8.76
		100	$ 8.46
		250	$ 8.07
		500	$ 7.80
		1000	$ 7.53
Newark	Each	1	$ 11.73
		5	$ 11.44
		10	$ 11.15
		25	$ 10.56
		50	$ 9.97
		100	$ 9.39

Description

General part information

RU2S-D Series

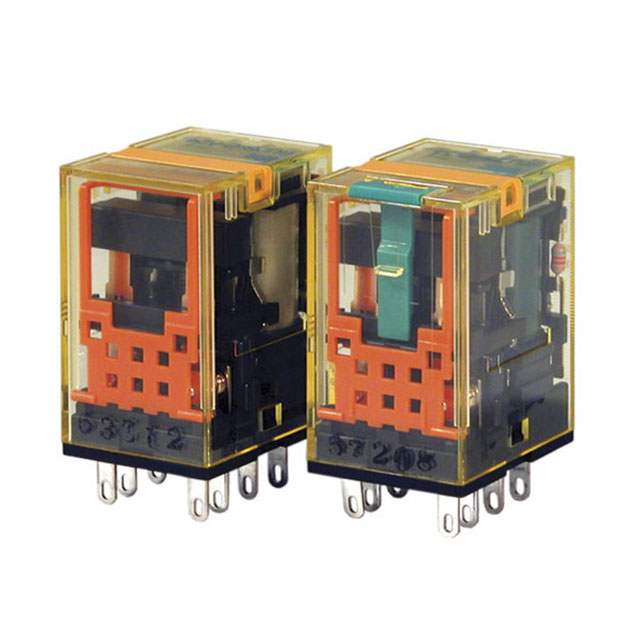

The RU2S-D24 is a general-purpose Compact Power Relay with DC coil. This RU-series power relay has DPDT cadmium-free AgSnOIn contacts with latching check button. Solder-free construction (spot welded, no solder points, lead-free), manual latching lever with color coding for AC or DC coil.
