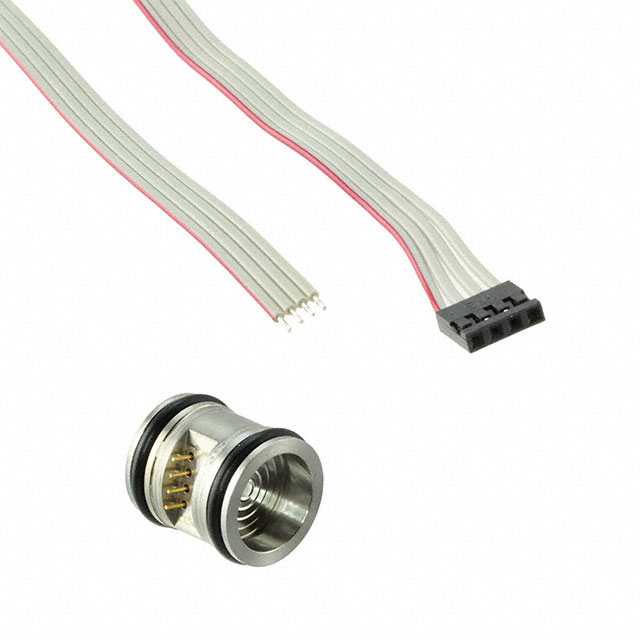

DP86-300D

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR PRESSURE

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Operating Pressure	Operating Pressure	Accuracy	Package / Case	Output [Max]	Output [Min]	Port Style	Applications	Pressure Type	Termination Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
TE Connectivity Measurement Specialties DP86-300D	125 °C	-40 °C	Wheatstone Bridge	300 PSI	2068.43 kPa	0.1 %	Module	100 mV	0 mV	No Port	Industrial Automation	Differential	Wire Leads	900 PSI	6205.28 kPa	9.5 V	5 V
TE Connectivity Measurement Specialties DP86-100D	125 °C	-40 °C	Wheatstone Bridge	100 PSI	689.48 kPa	0.1 %	Module	100 mV	0 mV	No Port	Industrial Automation	Differential	Wire Leads	300 PSI	2068.43 kPa	9.5 V	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 267.71

General part information

SENSOR PRESSURE

Technical documentation and resources
