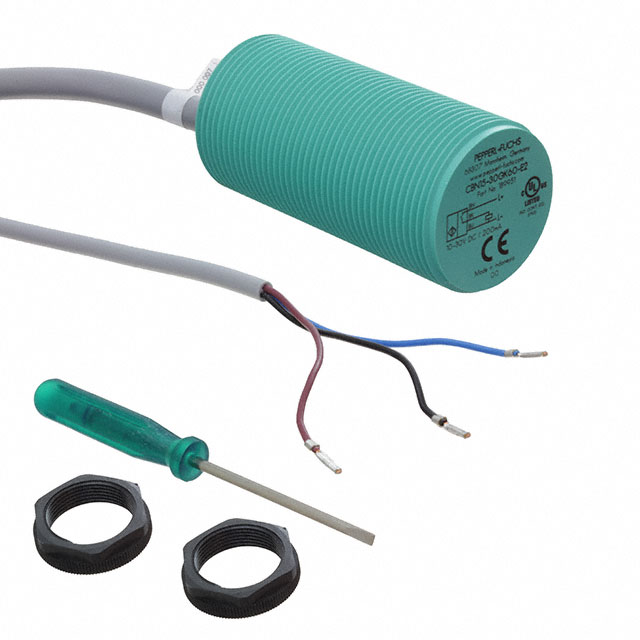

CBN15-30GK60-E0

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NPN

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 15MM NPN

Technical Specifications

Parameters and characteristics for this part

Specification	CBN15-30GK60-E0

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Polybutylene Terephthalate (PBT)
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M30
Sensing Distance	15 mm
Sensing Distance	0.591 "
Sensor Type	Capacitive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensor Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Indicator [custom]	Package / Case	Material - Body	Sensing Distance	Sensing Distance	Output Type	Shielding	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS CBN15-30GK60-E0	Capacitive	Cable	70 °C	-25 °C	LED	Cylinder Threaded - M30	Polybutylene Terephthalate (PBT)	15 mm	0.591 "	PNP-NO 3-Wire	Unshielded	IP67	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 15MM NPN
