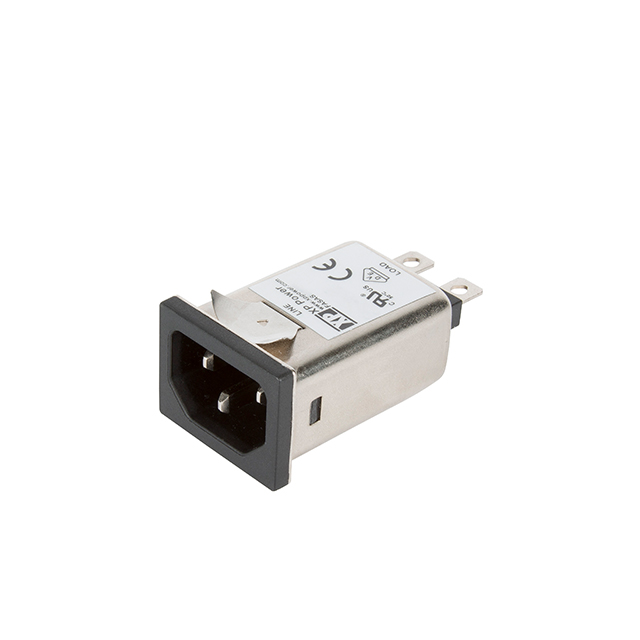

FASAS01SFR

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

XP POWER

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	FASAS01SFR

Accomodates a Fuse	False
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Features	Bleed Resistor, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	21.6 mm
Panel Cutout Dimensions [y]	28.8 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	230 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC

Part	Connector Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Mounting Type	Features	Current Rating - Filter	Accomodates a Fuse	Current Rating - Appliance Inlet	Termination	Termination	Termination	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Filter Type	Material Flammability Rating	Connector Style
XP POWER FASAS01PFR	Male Blades Receptacle	28.6 mm	21.5 mm	Panel Mount Snap-In	Bleed Resistor Shielded	1 A		1 A	0.25 in	6.3 mm	Quick Connect	115 VAC	230 VAC	Filtered (EMI RFI) - Commercial	UL94 V-2	IEC 320-C14
XP POWER FASAS01SFR	Male Blades Receptacle	28.8 mm	21.6 mm	Flange Panel Mount	Bleed Resistor Shielded	1 A		1 A	0.25 in	6.3 mm	Quick Connect	115 VAC	230 VAC	Filtered (EMI RFI) - Commercial	UL94 V-2	IEC 320-C14

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
