PPM-2-35135-S1

Active

CUI Devices

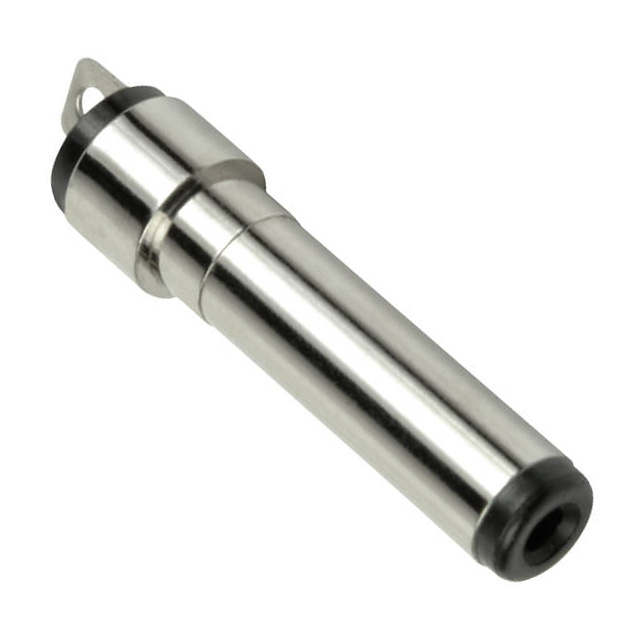

POWER PLUG, 1.35 X 3.5 X 20 MM,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PPM-2-35135-S1

Active

CUI Devices

POWER PLUG, 1.35 X 3.5 X 20 MM,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PPM-2-35135-S1

Actual Diameter [diameter]	0.053 in, 0.138 "
Actual Diameter [diameter]	3.5 mm, 1.35 mm
Body Color	Silver
Body Material	Brass
Connector Type	Plug
Contact Material	Phosphor Bronze
Contact Material - Plating [custom]	Nickel
Current Rating (Amps)	5 A
Gender	Female
Industry Recognized Mating Diameter [diameter]	0.053 ", 1.35 mm, 0.138 ", 3.5 mm
Insulation Color	Black
Internal Switch(s)	False
Mating Length/Depth	0.535 in
Mating Length/Depth	13.6 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Shielding	Unshielded
Termination	Solder Eyelet
Voltage - Rated	24 VDC

PPM-2 Series

Part	Gender	Body Color	Body Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Voltage - Rated	Mating Length/Depth	Mating Length/Depth	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Industry Recognized Mating Diameter [custom]	Termination	Contact Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Actual Diameter	Actual Diameter	Contact Material - Plating [custom]	Insulation Color	Mounting Type	Connector Type	Actual Diameter	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Mating Length/Depth [custom]	Mating Length/Depth [custom]	Actual Diameter [diameter]	Actual Diameter [diameter]	Includes
CUI Devices PPM-2-47517-SG-WT	Female	Silver	Brass	2	2	20 V	0.52 in	13.2 mm	4.75 mm	0.068 "	1.75 mm	0.187 "	Solder Eyelet	Phosphor Bronze	Unshielded	70 °C	-25 °C	6 A	1.7 mm 4.75 mm	0.067 in 0.187 in	Nickel	White	Free Hanging (In-Line)	Plug
CUI Devices PPM-2-5521L-S	Female	Silver	Brass	2	2	20 V	0.689 in	17.5 mm					Solder Eyelet	Phosphor Bronze	Unshielded	70 °C	-25 °C	7 A	0.083 " 0.217 "		Nickel	Black	Free Hanging (In-Line)	Plug	2.1 mm 5.5 mm	0.083 in 0.217 "	2.1 mm 5.5 mm
CUI Devices PPM-2-35135-B	Female	Silver	Brass	2	2	24 VDC							Solder	Brass	Unshielded	70 °C	-25 °C	3 A			Nickel	Silver	Free Hanging (In-Line)	Plug			0.053 " 0.138 " 1.35 mm 3.5 mm	0.055 in	0.138 in	3.5 mm	1.4 mm	0.63 in	16 mm
CUI Devices PPM-2-35135-S1	Female	Silver	Brass	2	2	24 VDC	0.535 in	13.6 mm					Solder Eyelet	Phosphor Bronze	Unshielded	70 °C	-25 °C	5 A			Nickel	Black	Free Hanging (In-Line)	Plug			0.053 " 0.138 " 1.35 mm 3.5 mm							0.053 in 0.138 "	1.35 mm 3.5 mm
CUI Devices PPM-2-35135-S	Female	Silver	Brass	2	2	24 VDC	0.343 "	8.7 mm					Solder	Phosphor Bronze	Unshielded	70 °C	-25 °C	5 A			Nickel	Black	Free Hanging (In-Line)	Plug			0.053 " 0.138 " 1.35 mm 3.5 mm							0.053 in 0.138 "	1.35 mm 3.5 mm
CUI Devices PPM-2-35135-SG	Female	Silver	Brass	2	2	24 VDC	0.343 "	8.7 mm					Solder	Phosphor Bronze	Unshielded	70 °C	-25 °C	5 A			Nickel	Black	Free Hanging (In-Line)	Plug			0.053 " 0.138 " 1.35 mm 3.5 mm							0.053 in 0.138 "	1.35 mm 3.5 mm
CUI Devices PPM-2-3511-B	Female	Silver	Brass			24 VDC							Solder	Brass	Unshielded	70 °C	-25 °C	3 A			Nickel	Black	Free Hanging (In-Line)	Plug		0.043 " 0.138 in	1.1 mm 3.5 mm					0.63 in	16 mm	0.043 " 0.138 "	1.1 mm 3.5 mm	1 Connector 1 Handle
CUI Devices PPM-2-5521-SG	Female	Silver	Brass	2	2	20 V	0.622 in	15.8 mm					Solder Eyelet	Phosphor Bronze	Unshielded	70 °C	-25 °C	7 A	0.083 " 0.217 "		Nickel	Black	Free Hanging (In-Line)	Plug	2.1 mm 5.5 mm	0.083 in 0.217 "	2.1 mm 5.5 mm
CUI Devices PPM-2-47517-SG	Female	Silver	Brass	2	2	20 V	0.52 in	13.2 mm	4.75 mm	0.068 "	1.75 mm	0.187 "	Solder Eyelet	Phosphor Bronze	Unshielded	70 °C	-25 °C	6 A	1.7 mm 4.75 mm	0.067 in 0.187 in	Nickel	Black	Free Hanging (In-Line)	Plug
CUI Devices PPM-2-35135-S	Female	Silver	Brass	2	2	24 VDC	0.343 "	8.7 mm					Solder	Phosphor Bronze	Unshielded	70 °C	-25 °C	5 A			Nickel	Black	Free Hanging (In-Line)	Plug			0.053 " 0.138 " 1.35 mm 3.5 mm							0.053 in 0.138 "	1.35 mm 3.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.51
		10	$ 0.45
		25	$ 0.41
		50	$ 0.38
		100	$ 0.37
		250	$ 0.34
		500	$ 0.32
		1000	$ 0.26
		3000	$ 0.24

Description

General part information

PPM-2 Series

Power Barrel Connector Plug 1.35mm ID (0.053"), 3.50mm OD (0.138") Free Hanging (In-Line)
