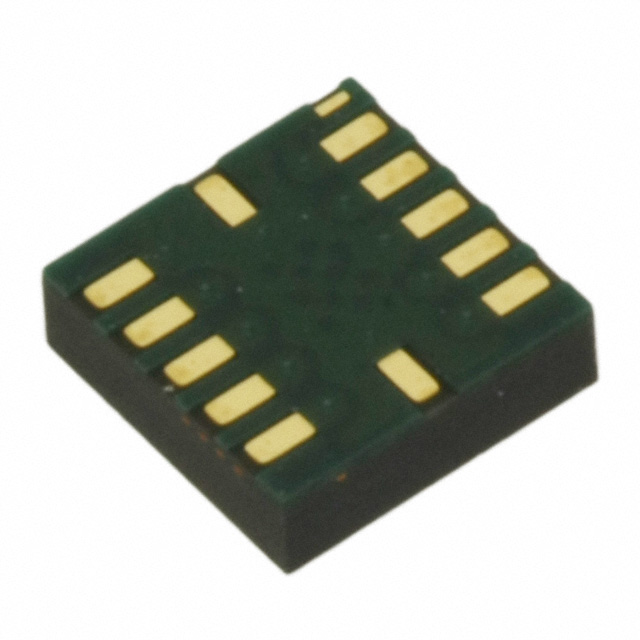

BMA180

Obsolete

Bosch Sensortec

ACCEL 1-16G I2C/SPI 12LGA

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

ACCEL 1-16G I2C/SPI 12LGA

Technical Specifications

Parameters and characteristics for this part

Specification	BMA180

Acceleration Range	8 g, 2 g, 1.5 g, 4 g, 3 g, 16 g
Acceleration Range [Max]	1 g
Acceleration Range [Min]	-1 g
Axis [x]	X
Axis [y]	Y
Axis [z]	Z
Bandwidth [Max]	1.2 kHz
Bandwidth [Min]	0.2 Hz
Features	Adjustable Bandwidth, Selectable Scale
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C, SPI
Package / Case	12-VFLGA
Sensitivity (LSB/g) [Max]	8192 LSB/g
Sensitivity (LSB/g) [Min]	512 LSB/g
Supplier Device Package	12-LGA (3x3)
Type	Digital
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.62 V

Part	Contents	Type	Function	Utilized IC / Part	Axis [z]	Axis [y]	Axis [x]	Mounting Type	Acceleration Range [Min]	Acceleration Range	Acceleration Range [Max]	Features	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Sensitivity (LSB/g) [Max]	Sensitivity (LSB/g) [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	Output Type	Bandwidth [Max]	Bandwidth [Min]
Bosch Sensortec BMA180-SHUTL	Board(s)	Sensor	Accelerometer	BMA180
Bosch Sensortec BMA180		Digital			Z	Y	X	Surface Mount	-1 g	1.5 g 2 g 3 g 4 g 8 g 16 g	1 g	Adjustable Bandwidth Selectable Scale	12-LGA (3x3)	85 °C	-40 °C	8192 LSB/g	512 LSB/g	3.6 V	1.62 V	12-VFLGA	I2C SPI	1.2 kHz	0.2 Hz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±1g, 1.5g, 2g, 3g, 4g, 8g, 16g 0.2Hz ~ 1.2kHz 12-LGA (3x3)

Technical documentation and resources
