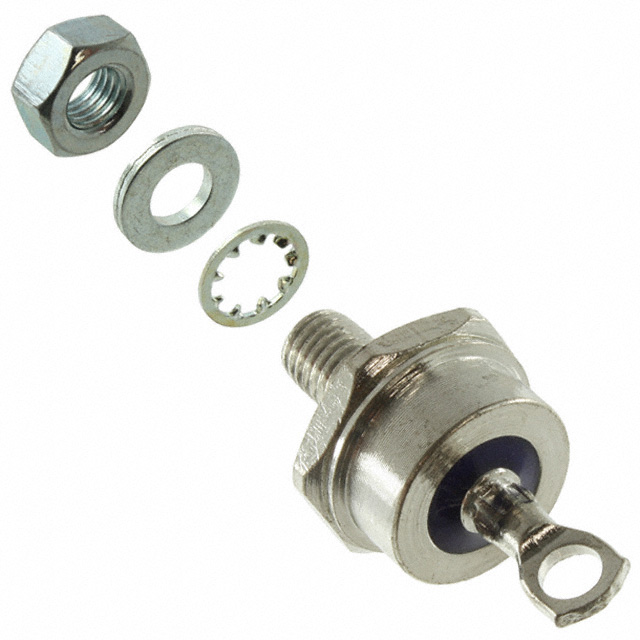

1N6098

Active

GeneSiC Semiconductor

DIODE SCHOTTKY 40V 50A DO5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SCHOTTKY 40V 50A DO5

Technical Specifications

Parameters and characteristics for this part

Specification	1N6098

Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	5 mA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	200 mA, 500 ns
Supplier Device Package	DO-5
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	40 V
Voltage - Forward (Vf) (Max) @ If [Max]	700 mV

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Supplier Device Package	Package / Case	Voltage - Forward (Vf) (Max) @ If [Max]	Technology	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Mounting Type
GeneSiC Semiconductor 1N6098	40 V	150 °C	-65 C	200 mA 500 ns	DO-5	DO-203AB DO-5 Stud	700 mV	Schottky	5 mA	50 A	Chassis Stud Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 40 V 50A Chassis, Stud Mount DO-5
