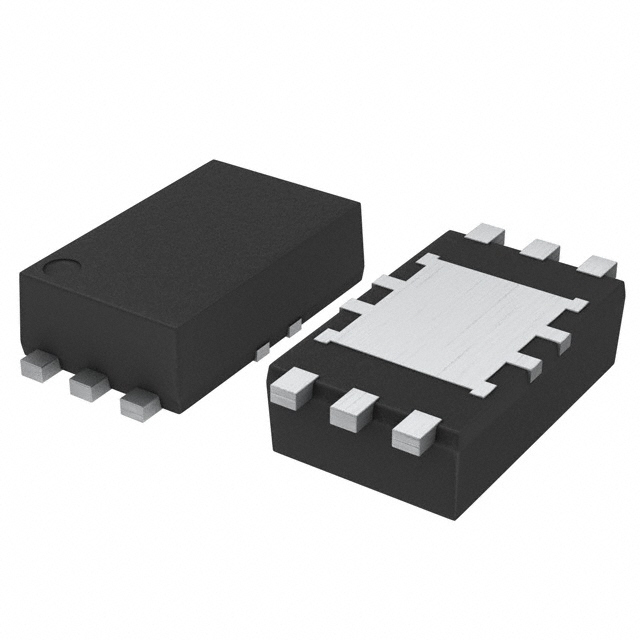

BD1CIC0WHFV-GTR - 6-HVSOF_HSOF6 Pkg

BD1CIC0WHFV-GTR

Active
Rohm Semiconductor

1A 1.25V, FIXED OUTPUT, HIGH-ACCURACY LDO REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

BD1CIC0WHFV-GTR - 6-HVSOF_HSOF6 Pkg

BD1CIC0WHFV-GTR

Active
Rohm Semiconductor

1A 1.25V, FIXED OUTPUT, HIGH-ACCURACY LDO REGULATOR

Technical Specifications

Parameters and characteristics for this part

SpecificationBD1CIC0WHFV-GTR
Control FeaturesEnable
Current - Output1 A
Current - Quiescent (Iq)250 çA
Current - Supply (Max) [Max]500 µA
Mounting TypeSurface Mount
Number of Regulators1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Output ConfigurationPositive
Output Type1.81 mOhm
Package / Case6-SMD, Flat Leads Exposed Pad
Protection FeaturesSoft Start, Over Temperature, Over Current
Supplier Device Package6-HVSOF
Voltage - Input (Max) [Max]5.5 V
Voltage - Output (Min/Fixed)1.25 V
Voltage Dropout (Max) [Max]0.6 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.09
Digi-Reel® 1$ 1.09
Tape & Reel (TR) 3000$ 0.28
6000$ 0.26
9000$ 0.25
15000$ 0.24
21000$ 0.23
30000$ 0.23
NewarkEach (Supplied on Cut Tape) 1$ 0.39

Description

General part information

BD1CIC0WHFV Series

BD1CIC0WHFV is a LDO regulator with output current 1.0A. The output accuracy is ±1% of output voltage. It is used for the wide applications of digital appliances. Over current protection (for protecting the IC destruction by output short circuit), circuit current ON/OFF switch (for setting the circuit 0µA at shutdown mode), and thermal shutdown circuit (for protecting IC from heat destruction by over load condition) are all built in. It is usable for ceramic capacitor and enables to improve smaller set and long-life.
