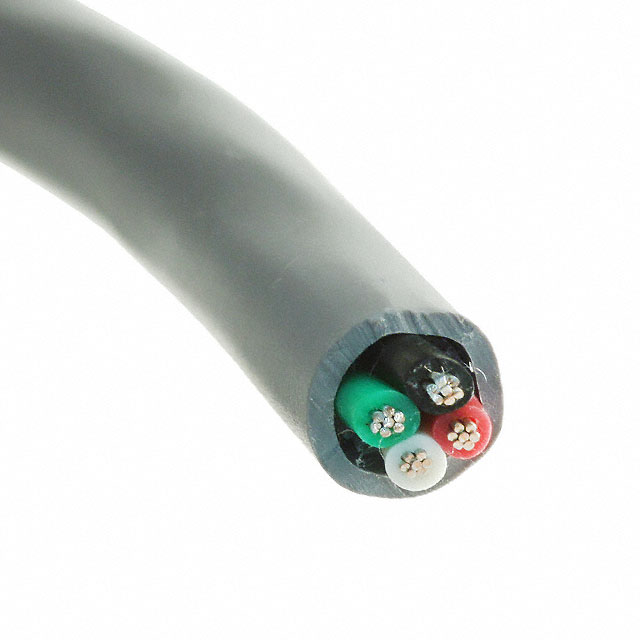

1896/4C SL324
ActiveALPHA WIRE
CABLE 4COND 20AWG SLATE FEET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1896/4C SL324
ActiveALPHA WIRE
CABLE 4COND 20AWG SLATE FEET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1896/4C SL324 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 28 |
| Conductor Strand [custom] | 7 |
| Jacket (Insulation) Diameter [diameter] | 0.209 in |
| Jacket (Insulation) Diameter [diameter] | 5.31 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.02 in |
| Jacket (Insulation) Thickness | 0.508 mm |
| Jacket Color | Slate |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Ratings | UL Style 2509 |
| Spool Size | 3500 ft |
| Spool Size | 1066.8 m |
| Usage | Control, Communication |
| Voltage | 300 V |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 1.58 | |
| 3 | $ 1.46 | |||
| 5 | $ 1.41 | |||
| 7 | $ 1.38 | |||
| 10 | $ 1.34 | |||
| 25 | $ 1.26 | |||
| 50 | $ 1.20 | |||
| 100 | $ 1.14 | |||
Description
General part information
1896/4C Series
4 Conductor Multi-Conductor Cable Slate 20 AWG Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
