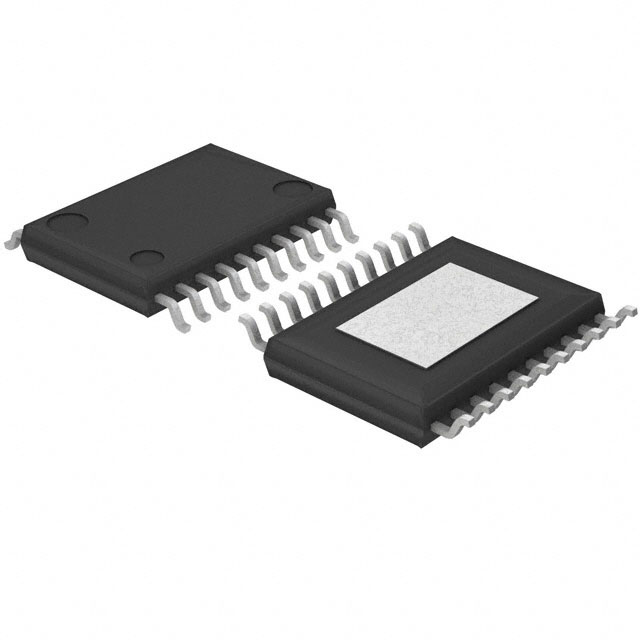

MP7722DF-LF-Z

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D STER 20W 20TSSOPF

Search across all available documentation for this part.

Active

MONOLITHIC POWER SYSTEMS (MPS)

IC AMP CLASS D STER 20W 20TSSOPF

Technical Specifications

Parameters and characteristics for this part

Specification	MP7722DF-LF-Z

Features	Mute, Shutdown, Short-Circuit and Thermal Protection, Depop
Max Output Power x Channels @ Load	2 channels, 20 W
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	2-Channel (Stereo)
Package / Case [custom]	4.4 mm, 0.173 in
Package / Case [custom]	Exposed Pad
Package / Case [custom]	20-TSSOP
Supplier Device Package	20-TSSOPF-EP
Type	Class D

Part	Max Output Power x Channels @ Load	Operating Temperature [Max]	Operating Temperature [Min]	Type	Features	Supplier Device Package	Package / Case [custom]	Package / Case [custom]	Package / Case [custom]	Output Type	Mounting Type
MONOLITHIC POWER SYSTEMS (MPS) MP7722DF-LF-Z	2 channels 20 W	85 °C	-40 °C	Class D	Depop Mute Short-Circuit and Thermal Protection Shutdown	20-TSSOPF-EP	0.173 in 4.4 mm	Exposed Pad	20-TSSOP	2-Channel (Stereo)	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Amplifier IC 2-Channel (Stereo) Class D 20-TSSOPF-EP

Technical documentation and resources
