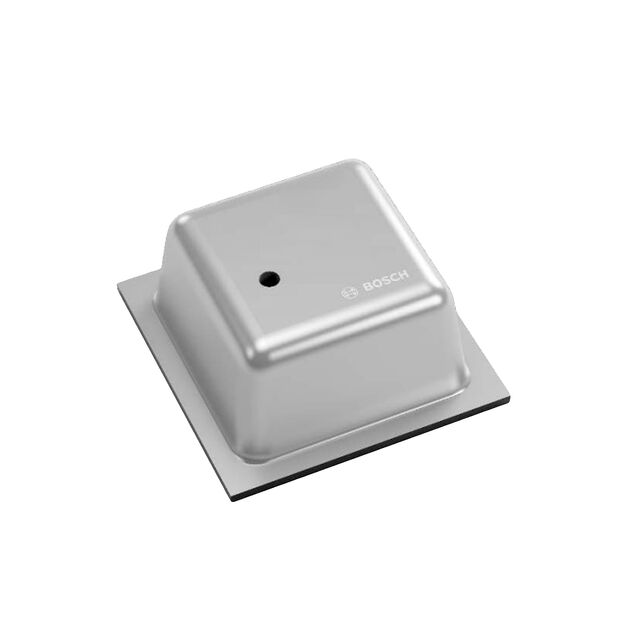

BMP390
ActiveBosch Sensortec
SENSOR 18.13PSIA 10LGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BMP390
ActiveBosch Sensortec
SENSOR 18.13PSIA 10LGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BMP390 |
|---|---|
| Accuracy | 0.01 PSI |
| Accuracy | 0.05 kPa |
| Applications | Board Mount |
| Maximum Pressure [Max] | 290.08 PSI |
| Maximum Pressure [Max] | 2000 kPa |
| Mounting Type | Surface Mount |
| Operating Pressure [Max] [x] | 18.13 PSI |
| Operating Pressure [Max] [x] | 125 kPa |
| Operating Pressure [Min] [x] | 0.3 bar |
| Operating Pressure [Min] [x] | 4.35 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | I2C, SPI |
| Package / Case | 10-WFLGA |
| Port Style | No Port |
| Supplier Device Package | 10-LGA (2x2) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.17 | |
| 5 | $ 3.51 | |||
| 10 | $ 3.26 | |||
| 25 | $ 2.96 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.56 | |||
| 500 | $ 2.16 | |||
| 1000 | $ 2.01 | |||
| 5000 | $ 1.70 | |||
| Digi-Reel® | 1 | $ 4.17 | ||
| 5 | $ 3.51 | |||
| 10 | $ 3.26 | |||
| 25 | $ 2.96 | |||
| 50 | $ 2.75 | |||
| 100 | $ 2.56 | |||
| 500 | $ 2.16 | |||
| 1000 | $ 2.01 | |||
| 5000 | $ 1.70 | |||
| Tape & Reel (TR) | 10000 | $ 1.70 | ||
Description
General part information
BMP390 Series
Pressure Sensor 4.35PSI ~ 18.13PSI (30kPa ~ 125kPa) Absolute 10-WFLGA
