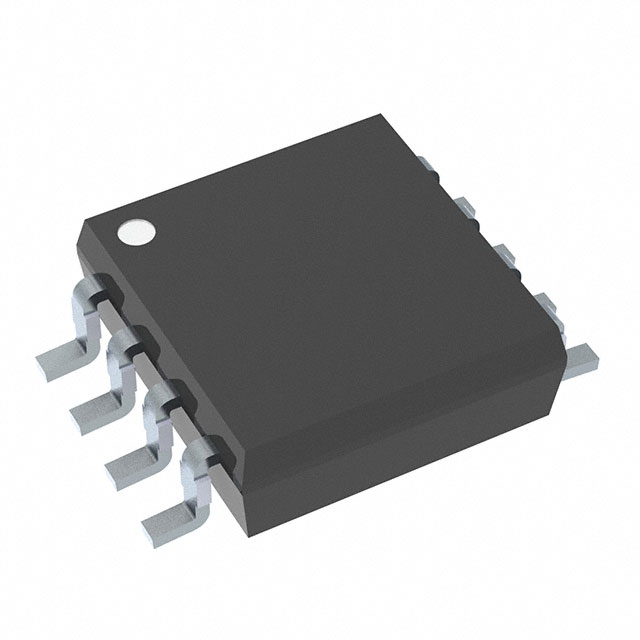

NJM2143R-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 2 CIRCUIT 8VSP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJM2143R-TE1
ActiveNisshinbo Micro Devices Inc
IC OPAMP GP 2 CIRCUIT 8VSP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJM2143R-TE1 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 25 nA |
| Current - Output / Channel | 30 mA |
| Gain Bandwidth Product | 600 kHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Supplier Device Package | 8-VSP |
| Voltage - Input Offset | 2 mV |
| Voltage - Supply Span (Max) [Max] | 20 V |
| Voltage - Supply Span (Min) [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| Digi-Reel® | 1 | $ 0.60 | ||
| Tape & Reel (TR) | 2000 | $ 0.27 | ||
| 4000 | $ 0.26 | |||
| 6000 | $ 0.26 | |||
| 10000 | $ 0.26 | |||
| 14000 | $ 0.25 | |||
| 20000 | $ 0.25 | |||
Description
General part information
NJM2143 Series
General Purpose Amplifier 2 Circuit 8-VSP
