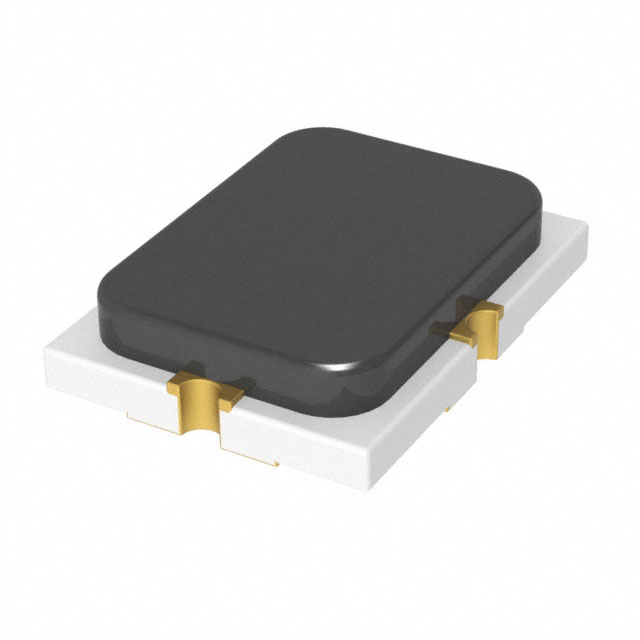

FD-4030-12A-C1-C
ObsoleteDelta Electronics/Cyntec
SMD FUSE RATED CURRENT 12A/35VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FD-4030-12A-C1-C
ObsoleteDelta Electronics/Cyntec
SMD FUSE RATED CURRENT 12A/35VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FD-4030-12A-C1-C |
|---|---|
| Applications | Battery Protection |
| Approval Agency | TUV, UL |
| Breaking Capacity @ Rated Voltage | 50 A |
| Current Rating (Amps) | 12 A |
| Features | True |
| Features [Max] | 4.5 V |
| Features [Min] | 3 V |
| Fuse Type | Board Mount |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -10 °C |
| Package / Case | 1612, 4030 Metric |
| Response Time | Fast Blow |
| Size / Dimension [x] | 0.157 " |
| Size / Dimension [x] | 4 mm |
| Size / Dimension [y] | 0.118 in |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 0.95 mm |
| Size / Dimension [z] | 0.037 " |
| Voltage Rating - DC | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
FD-4030 Series
12A 35 VDC Fuse Board Mount Surface Mount
