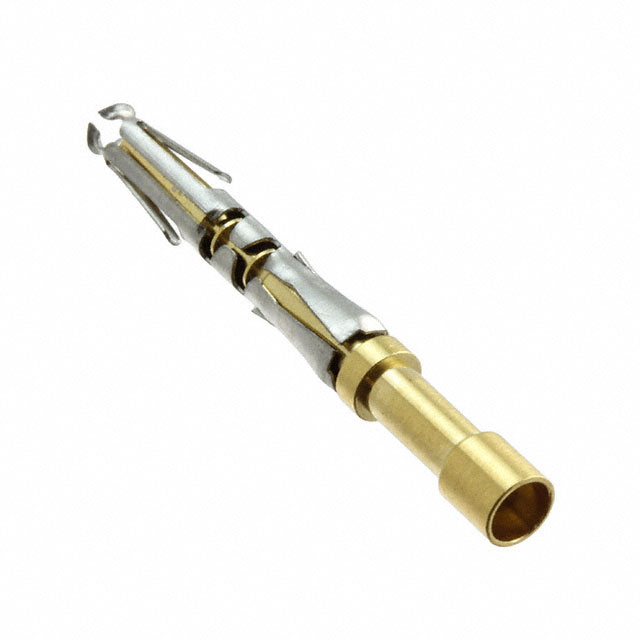

RC18W3K
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 18-20AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC18W3K
ActiveSouriau-Sunbank by Eaton
CONTACT SOCKET 18-20AWG CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC18W3K |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Copper Alloy |
| Contact Size | 20 |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Type | Signal, Machined |
| Wire Gauge or Range - AWG [Max] | 20 AWG |
| Wire Gauge or Range - AWG [Min] | 18 AWG |
| Wire Gauge or Range - mm² [Max] [custom] | 0.82 mm² |
| Wire Gauge or Range - mm² [Min] [custom] | 0.5 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.41 | |
| 10 | $ 3.10 | |||
| 25 | $ 2.93 | |||
| 50 | $ 2.86 | |||
| 100 | $ 2.73 | |||
| 250 | $ 2.39 | |||
| 500 | $ 2.32 | |||
| 1000 | $ 1.98 | |||
| 2500 | $ 1.84 | |||
Description
General part information
RC18W Series
Socket Contact 18-20 AWG Size 20 Crimp Gold
