1873650

Active

Phoenix Contact

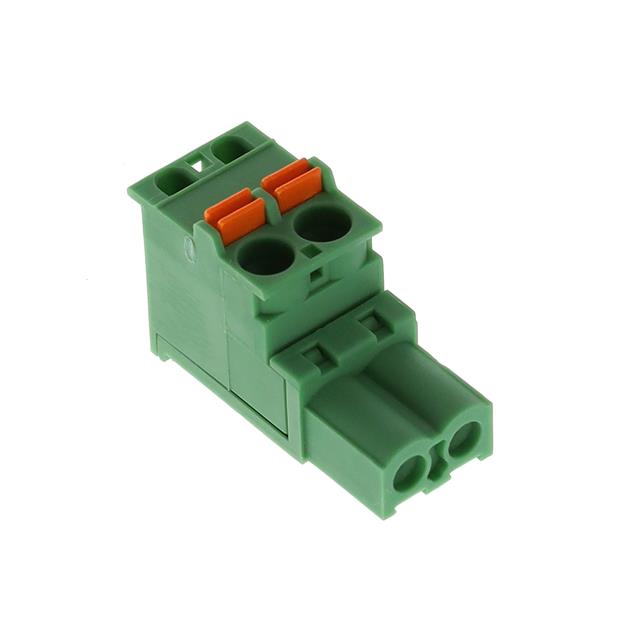

BARRIER STRIP TERMINAL BLOCK, 12A, 2.5MM2, 1 ROW(S), 1 DECK(S), ROHS COMPLIANT

Search across all available documentation for this part.

Active

Phoenix Contact

BARRIER STRIP TERMINAL BLOCK, 12A, 2.5MM2, 1 ROW(S), 1 DECK(S), ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	1873650

Color	Green
Contact Mating Finish	Tin
Current - IEC	12 A
Current - UL	10 A
Housing Material	Polyamide (PA), Nylon
Insulation Height	16.8 mm
Insulation Height	0.661 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Plug Wire Entry	270 °
Positions Per Level	2
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - IEC	630 V
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛ [Max]	2.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.2 mm˛
Wire Strip Length	10 mm

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring

Part	Voltage - IEC	Number of Positions	Current - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Contact Mating Finish	Color	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Material Flammability Rating	Type	Termination Style	Wire Strip Length	Positions Per Level	Mounting Type	Housing Material	Features	Plug Wire Entry	Current - IEC	Pitch [x]	Pitch [x]	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
Phoenix Contact 1873867	630 V	8	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in	0.2 mm²	2.5 mm²	UL94 V-0	Plug Female Sockets	Push-In Spring Screwless - Leg Spring	10 mm	8	Free Hanging (In-Line)	Polyamide (PA) Nylon	Mating Flange Retention Latches (Non-Wire Side)	270 °	12 A	0.2 in	5.08 mm	1
Phoenix Contact 1873650	630 V	2	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in			UL94 V-0	Plug Female Sockets	Push-In Spring Screwless - Leg Spring	10 mm	2	Free Hanging (In-Line)	Polyamide (PA) Nylon		270 °	12 A	0.2 in	5.08 mm	1	0.2 mm˛	2.5 mm˛
Phoenix Contact 1910089	630 V	7	10 A	12 AWG	26 AWG	300 V	Tin	Green	16.8 mm	0.661 in			UL94 V-0	Plug Female Sockets	Push-In Spring Screwless - Leg Spring	10 mm	7	Free Hanging (In-Line)	Polyamide (PA) Nylon		270 °	12 A	0.197 in	5 mm	1	0.2 mm˛	2.5 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 8 pos 5.08mm pitch Plug 24-12AWG Spring
