RSC-3-01

Active

Essentra Access Solutions

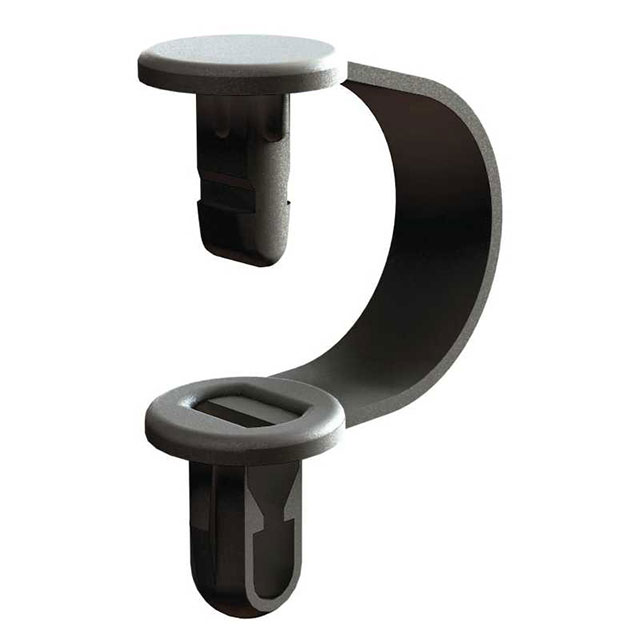

CBL CLIP BENDABLE BLACK PUSH IN

Search across all available documentation for this part.

Active

Essentra Access Solutions

CBL CLIP BENDABLE BLACK PUSH IN

Technical Specifications

Parameters and characteristics for this part

Specification	RSC-3-01

Color	Black
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Material Thickness	0.04 in
Material Thickness	1.02 mm
Mounting Type	Push In
Opening Size [custom]	5.56 mm
Opening Size [custom]	0.219 in
Panel Hole Size	0.189 in
Panel Hole Size	4.8 mm
Panel Thickness [Max]	0.125 "
Panel Thickness [Max]	3.18 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Type	Bendable, Clip
Type Attributes	Snap Closure
Width [x]	4.06 mm
Width [x]	0.16 "

Part	Material Thickness	Material Thickness	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Color	Material	Type	Material Flammability Rating	Opening Size [custom]	Opening Size [custom]	Panel Hole Size	Panel Hole Size	Type Attributes	Mounting Type	Width [x]	Width [x]
Essentra Access Solutions RSC-3-01	0.04 in	1.02 mm	0.79 mm	0.125 "	0.031 "	3.18 mm	Black	Polyamide (PA66) Nylon 6/6	Bendable Clip	UL94 V-2	5.56 mm	0.219 in	0.189 in	4.8 mm	Snap Closure	Push In	4.06 mm	0.16 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Bendable Black Push In 0.219" (5.56mm)

Technical documentation and resources

No documents available
