100007432

Active

Telegartner Inc

CU-CN M12D-BS C5 THR 1PC

Search across all available documentation for this part.

Active

Telegartner Inc

CU-CN M12D-BS C5 THR 1PC

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Ingress Protection	Contact Finish - Mating	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shielding	Shell Finish	Color	Shell Material	Insert Material	Number of Positions	Mounting Type	Mounting Feature	Applications	Contact Material	Orientation	Shell Size - Insert
Telegartner Inc 100007549	Female Sockets Plug	IP67 - Dust Tight Waterproof	Gold	Metal	85 °C	-40 °C	Solder	Unshielded	Nickel	Silver	Brass and Zinc Die Cast	Nylon Polyamide (PA)	4	Panel Mount Through Hole	Bulkhead - Front Side Nut	Industrial	Bronze	D	M12-4
Telegartner Inc 100007432	Female Sockets Plug	IP67 - Dust Tight Waterproof	Gold	Metal	85 °C	-40 °C	Solder	Unshielded	Nickel	Silver	Brass and Zinc Die Cast	Nylon Polyamide (PA)	4	Panel Mount Through Hole	Bulkhead - Front Side Nut	Industrial	Bronze	D	M12-4
Telegartner Inc 100007433	Female Sockets Plug	IP67 - Dust Tight Waterproof	Gold	Metal	85 °C	-40 °C	Solder	Unshielded	Nickel	Silver	Brass and Zinc Die Cast	Nylon Polyamide (PA)	4	Panel Mount Through Hole	Bulkhead - Rear Side Nut	Industrial	Bronze	D	M12-4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

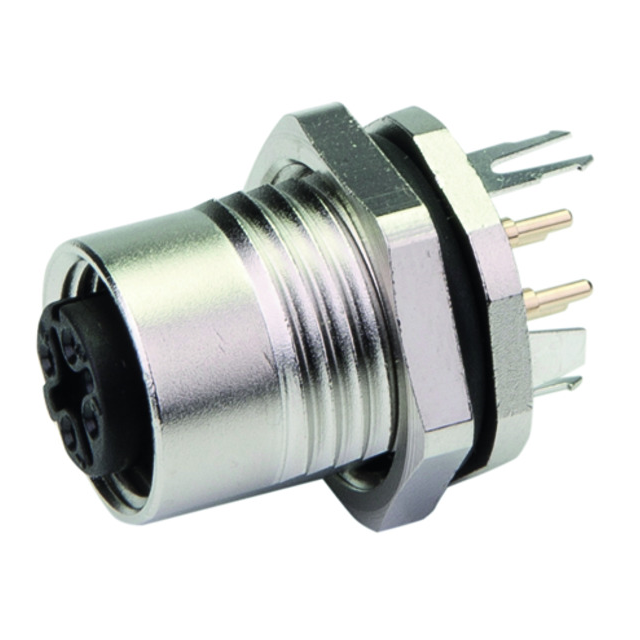

4 (Data) Position Circular Connector Plug, Female Sockets Solder
