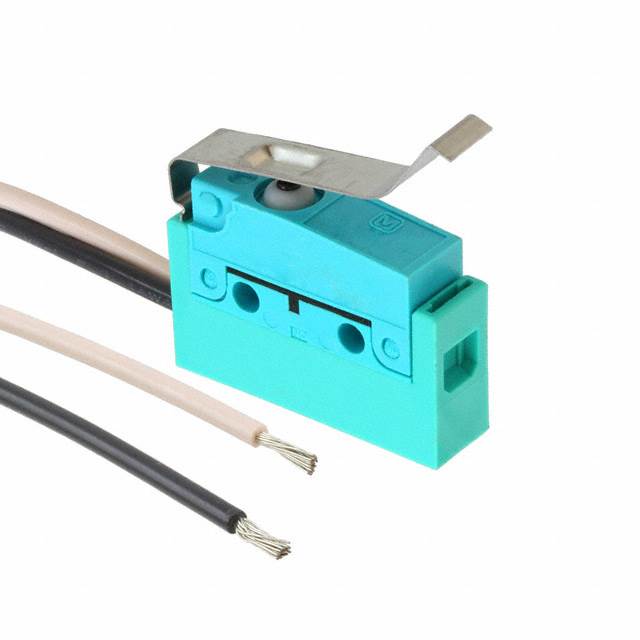

ABS563840 - ABS Series

ABS563840

Obsolete
Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 2A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsABS Type CatalogHow to Read Date Codes+1
ABS563840 - ABS Series

ABS563840

Obsolete
Panasonic Electric Works

SWITCH SNAP ACT SPST-NO 2A 125V

Deep-Dive with AI

DocumentsABS Type CatalogHow to Read Date Codes+1

Technical Specifications

Parameters and characteristics for this part

SpecificationABS563840
Actuator TypeLeaf, Lever
CircuitSPST-NO
Current Rating (Amps)2 A
Differential Travel1 mm
Differential Travel0.04 in
Electrical Life50000 Cycles
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mechanical Life500000 Cycles
Mounting TypeChassis Mount
Operating Force90 gf
Operating Position [custom]0.571 in
Operating Position [custom]14.5 mm
Operating Temperature [Max]85 °C
Operating Temperature [Min]-40 °C
Overtravel0.098 in
Overtravel2.5 mm
Pretravel4.5 mm
Pretravel0.178 in
Release Force17 gf
Switch FunctionOff-Mom
Termination StyleWire Leads
Voltage Rating - AC125 V
Voltage Rating - DC30 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

ABS563 Series

Switch SPST-NO Chassis Mount
