RXM-433-KH3

Active

TE Connectivity Linx

RF RCVR ASK/OOK 433MHZ MODULE

Search across all available documentation for this part.

Active

TE Connectivity Linx

RF RCVR ASK/OOK 433MHZ MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	RXM-433-KH3

Antenna Connector	Castellation
Applications	Remote Control, RKE, Home/Industrial Automation, Lighting
Current - Receiving	5.2 mA
Data Interface	Parallel
Features	Integrated Remote Control Decoder
Frequency	433 MHz
Modulation or Protocol	ASK, OOK
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Package / Case	31-SMD Module
Sensitivity	-112 dBm
Supplier Device Package	Module
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.1 V

Part	Supplier Device Package	Antenna Connector	Applications	Package / Case	Current - Receiving	Sensitivity	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Features	Data Interface	Modulation or Protocol	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type
TE Connectivity Linx RXM-433-KH3	Module	Castellation	Home/Industrial Automation Lighting Remote Control RKE	31-SMD Module	5.2 mA	-112 dBm	433 MHz	-40 °C	70 °C	Integrated Remote Control Decoder	Parallel	ASK OOK	2.1 V	3.6 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

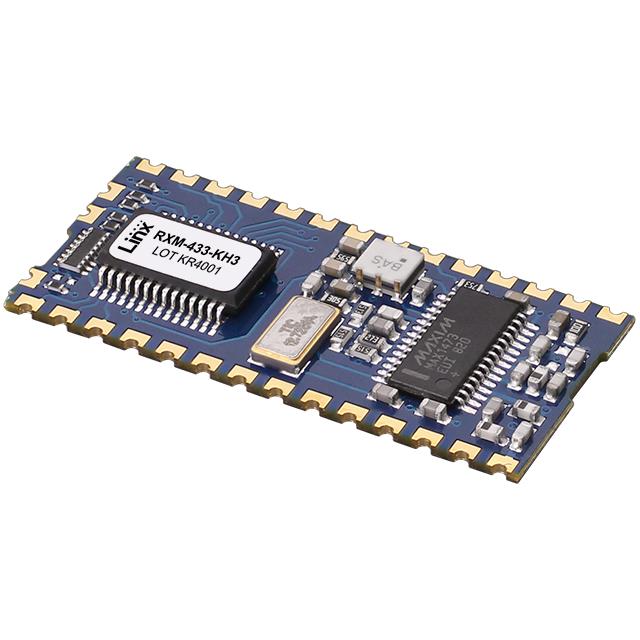

KH3 RF Receiver ASK, OOK 433MHz -112dBm Castellation Module

Technical documentation and resources
