DCD24AP240T320A50
ActiveVicor Corporation

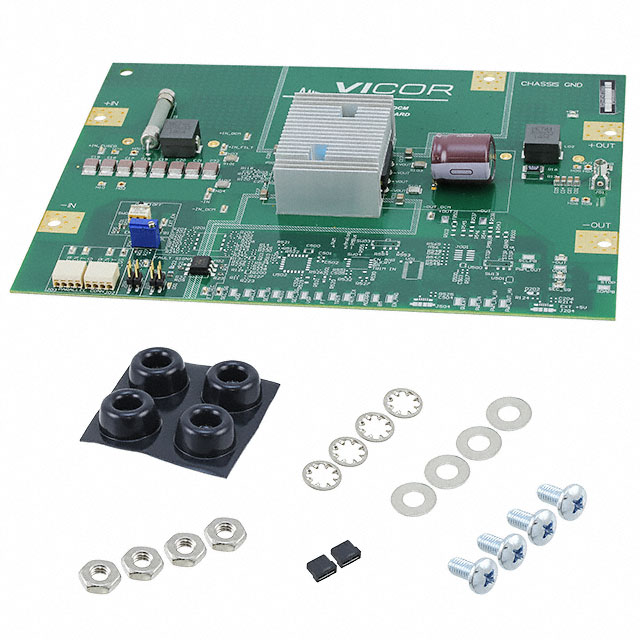

EVAL BOARD FOR DCM24AP240T320A50
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCD24AP240T320A50
ActiveVicor Corporation
EVAL BOARD FOR DCM24AP240T320A50
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DCD24AP240T320A50 |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 13.4 A |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 320 W |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | DCM24AP240x320A50 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1000.84 | |
Description
General part information
DCD24AP Series
DCM24AP240x320A50 VI Chip® DCM® DC/DC, Step Down 1, Isolated Outputs Evaluation Board
