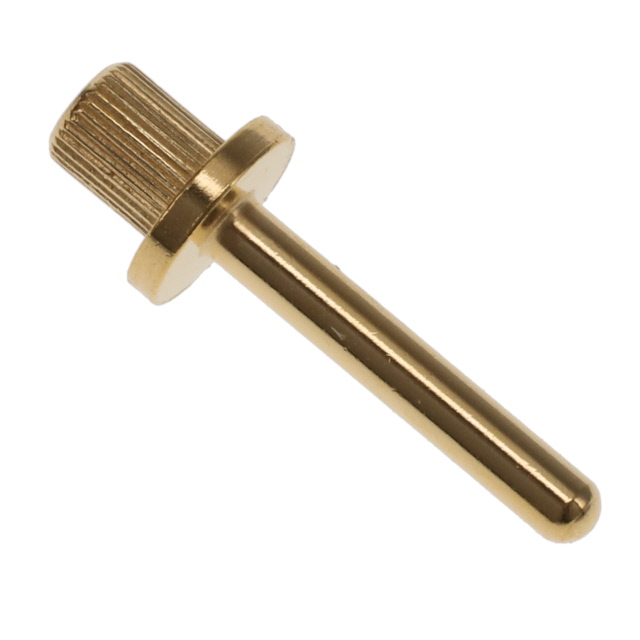

5475-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
5475-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5475-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.18 in |
| Flange Diameter [diameter] | 4.57 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.4 in |
| Length - Above Flange [x] | 10.16 mm |
| Length - Below Flange [x] | 0.125 in |
| Length - Below Flange [x] | 3.18 mm |
| Length - Overall [x] | 14.12 mm |
| Length - Overall [x] | 0.556 in |
| Mounting Hole Diameter [diameter] | 0.102 in |
| Mounting Hole Diameter [diameter] | 2.59 mm |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.55 mm |
| Pin Size - Above Flange [diameter] | 0.061 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Knurled, Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 2.30 | |
Description
General part information
5475-0 Series
PC Pin Terminal Connector Through Hole Gold 0.061" (1.55mm) Dia
Documents
Technical documentation and resources
No documents available
