1116A 0045000

Active

Belden Inc.

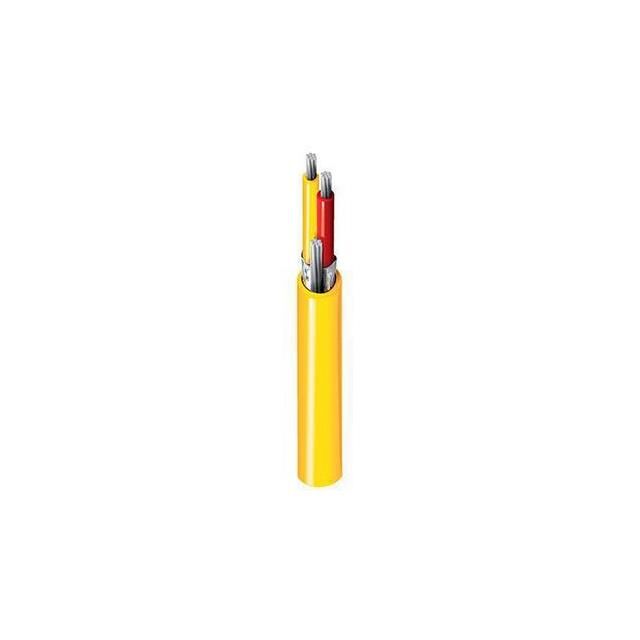

CABLE 2COND 16AWG YLW SHLD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG YLW SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	1116A 0045000

Cable Type	Multi-Conductor
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Strand	Solid
Features	Drain Wire, UV Resistant
Jacket (Insulation) Diameter [diameter]	4.34 mm
Jacket (Insulation) Diameter [diameter]	0.171 in
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.012 in
Jacket (Insulation) Thickness	0.305 mm
Jacket Color	Yellow
Number of Conductors	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-70 °C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Thermocouple
Wire Gauge	16 AWG

Part	Shield Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Shield Coverage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand	Jacket (Insulation) Material	Number of Conductors	Usage	Wire Gauge	Shield Type
Belden Inc. 1116A 0045000	Aluminum	4.34 mm	0.171 in	Fluorinated Ethylene-Propylene (FEP)	Drain Wire UV Resistant	200 °C	-70 °C	Multi-Conductor	100 %	0.012 in	0.305 mm	Yellow	Solid	Fluorinated Ethylene-Propylene (FEP) Plenum	2	Thermocouple	16 AWG	Foil

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.69

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Yellow 16 AWG Foil 5000' (1524.0m)
